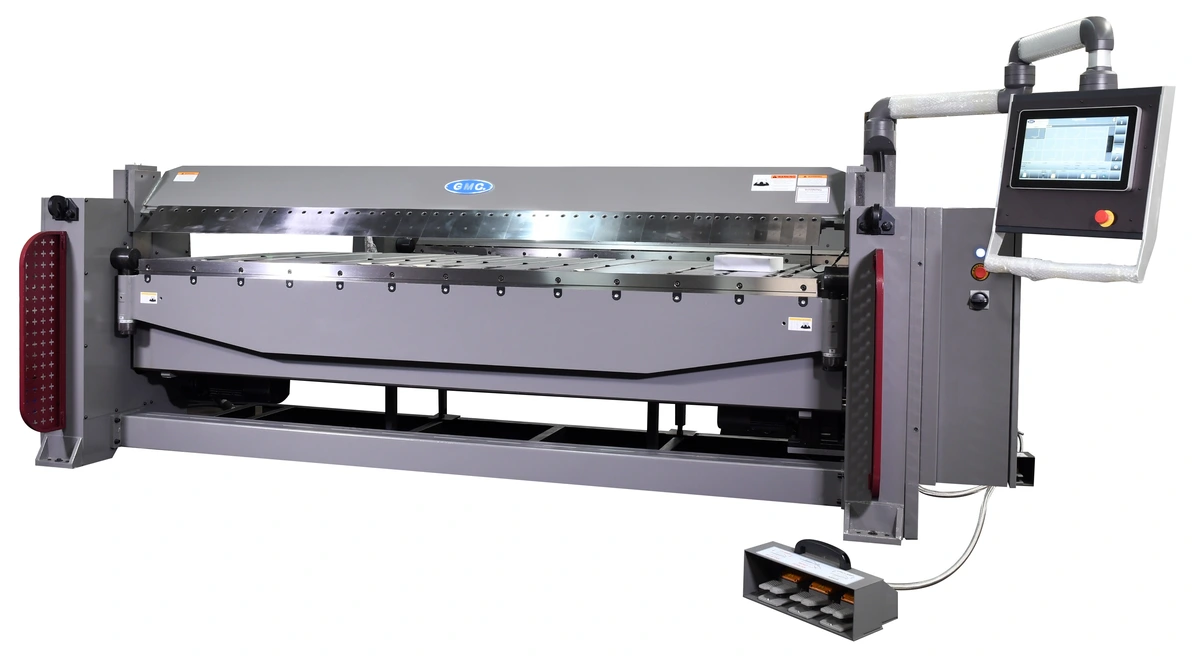

10' x 14 Ga. - CNC Folder and Box & Pan Brake
Have one to sell?
ConditionNew
1 available
New
CNC folding machine with an Italian ESA CNC control. 11" touch screen finger brake. 2000 jobs memory capacity.
ISO 9001 certified
Designed in US and Taiwan quality Machine
Meet OSHA and CE safety standard
ESA S840 CNC control, made in Italy
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct

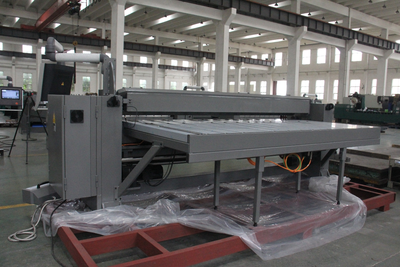

48” CNC back gauge with table and fingers
One piece 10' long straight finger
Comes with one 1” Insert Bar and one ½” Insert Bar
Yaskawa Servo motors and Drives
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Meet OSHA standard, to start the program, need to press foot pedal twice
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
Need to step up transformer if the power supply is 208V, 3 phase
One year industrial warranty for parts
Capacity mild steel: 14Ga.
Stainless steel: 18Ga.
Close hemming with one piece finger: 26Ga.
Open hemming: 24Ga.
Bending length capacity: 10’1”
Bend angle degree, programmable: 0- 135 degree

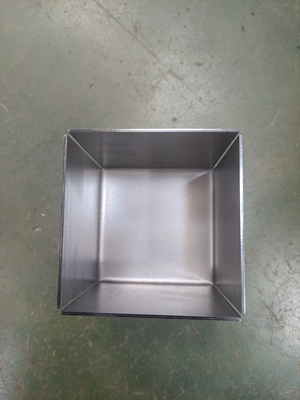

Max depth of box or pan: 4”
Large beam opening/clamping opening: 4-7/8”
Min. reverse bend: 1/2”
Max. table back gauge distance: 48-3/8”
Min. table back gauge distance: 1/2”
Back gauge repeatability: 0.0039”
Back gauge table height: 35-3/4”
Motor for bending leaf: 4HP, 220V,3phase
Servo motor for back gauge: 2HP ,220V, 3phase
Clamping motor: 1-1/2HP , 220V, 3phase
Amperage draw: 35A
Machine weight , lbs: 9,850 LBS
Shipping weight: 10,150 LBS
Machine dimensions, lwh: 168x79x67”
Shipping dimensions: 174x80x71”
