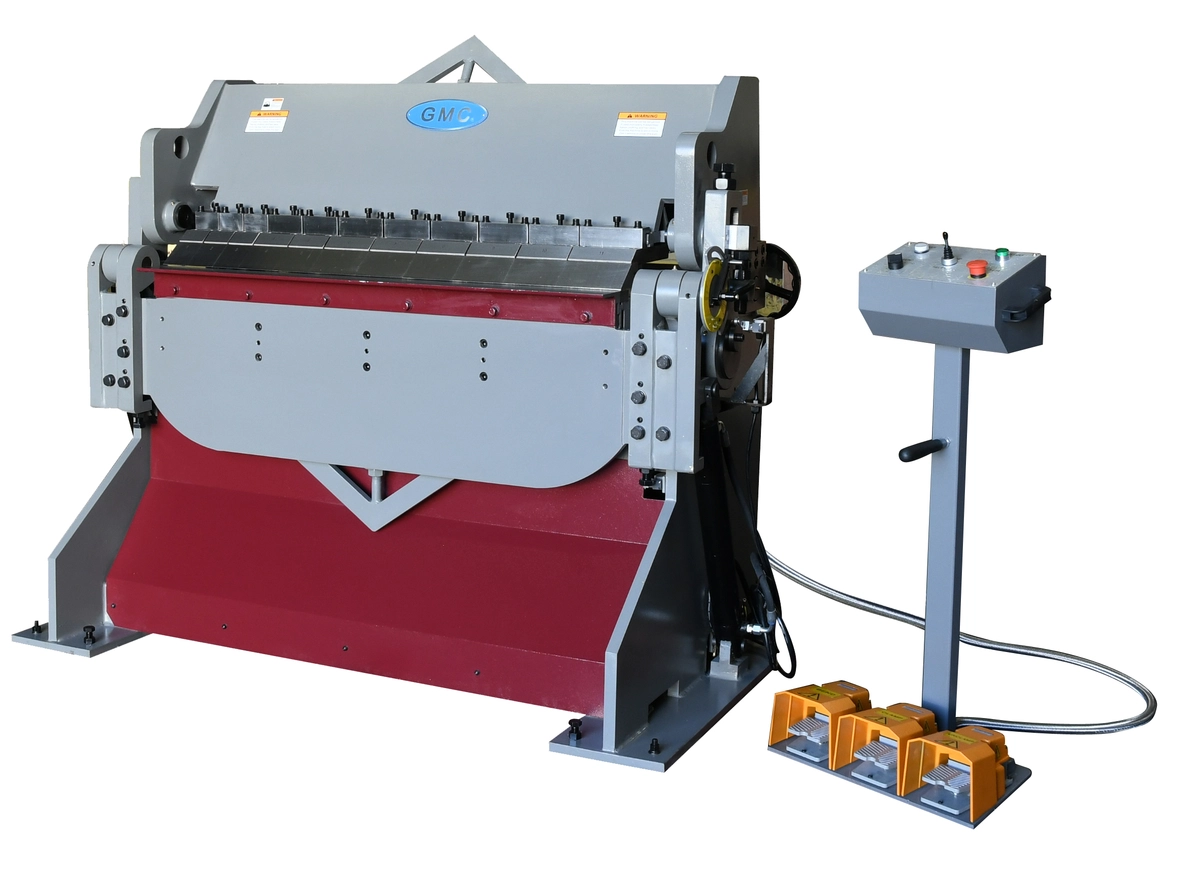

48" Box and Pan Brake, Hydraulic Sheet Metal Brake
Have one to sell?
ConditionNew
1 available
New

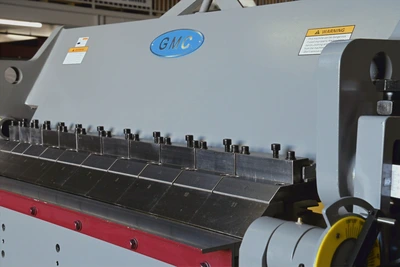

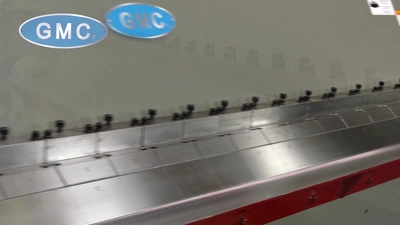

The HBB-0410 is equipped with 11 removable fingers to be able to form sheet metal into box and pans with ease. Easily bend up 4 foot sheets of metal, up to 10 gauge thick. Comparable to the Baileigh BB-4810H.
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
No Reviews Yet
Max bending length: 4’
Bending capacity mild steel - hrs (tensile 60k psi): 10 Ga.
Stainless steel (tensile 85k psi): 12 Ga.
Soft aluminum (tensile 28k psi): 1/4"
Hemming max thickness: 24 Ga.
Bend degree: 135 Degrees
Max. box & pan depth: 6"
Large beam opening: 3"
Manual go-to back gauge: 26”
Oil tank capacity: 10 gal.
Hydraulic oil: Shell #68 or equivalent
Main motor: 5 HP, 3 Phase 10A, Prewired: 220VAC , Optional: 440VAC 5A
Machine weight: 4,050 lbs.
Shipping weight: 4,100 lbs.
Machine dimensions: 67" x 46" x 67"
Shipping dimensions: 80” x 40” x 65”
