ProfileCenter
Have one to sell?
ConditionNew
1 available
New

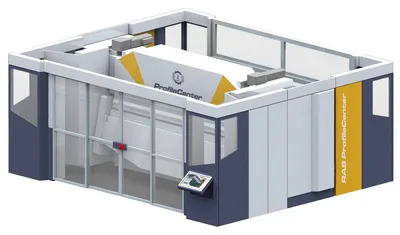

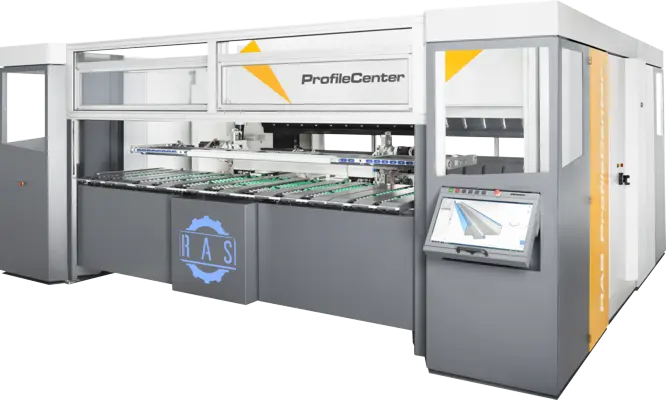

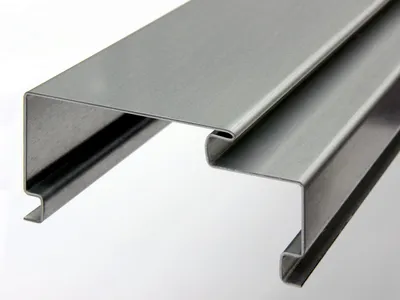

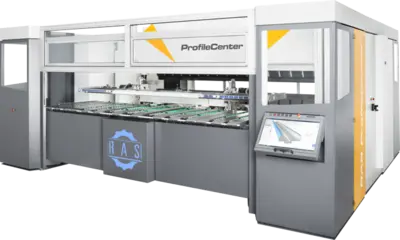

Flexible and automatic profile bends profiles such as door frames, elevator parts or cable ducts in batch size 1. The unique FlexGripper handling system moves, rotates and flips the blank automatically during the bending process.
ProfileCenter Highlights:
Fully automated squaring, handling, bending and unloading of profiles
Flexible bending – up and down
Automated bending sequences: short cycle times, low costs per part
No manual interaction needed: high productivity
Highest levels of precision and repeatability
Scratch-free bending: no tool wear
Ideal for batch size 1
Machine automatically adjusts to thicknesses and material type
Automatic one-click part programming
No operator bending expertise required even for complex profiles
Working length: 3200 mm
Material thickness max (400 n/mm²): 2.0 mm
Material thickness max (700 n/mm²): 1.5 mm
Blank dimensions min: 100 x 600 mm
Blank dimensions max: 700 x 3200 mm
Z-dimension min: 14.5 mm
One flange min: 40 mm
Part weight max: 35 kg
Programming: automatic
Machine dimensions: 5400 x 5200 mm
