XXL-Center
Have one to sell?
ConditionNew
1 available
New

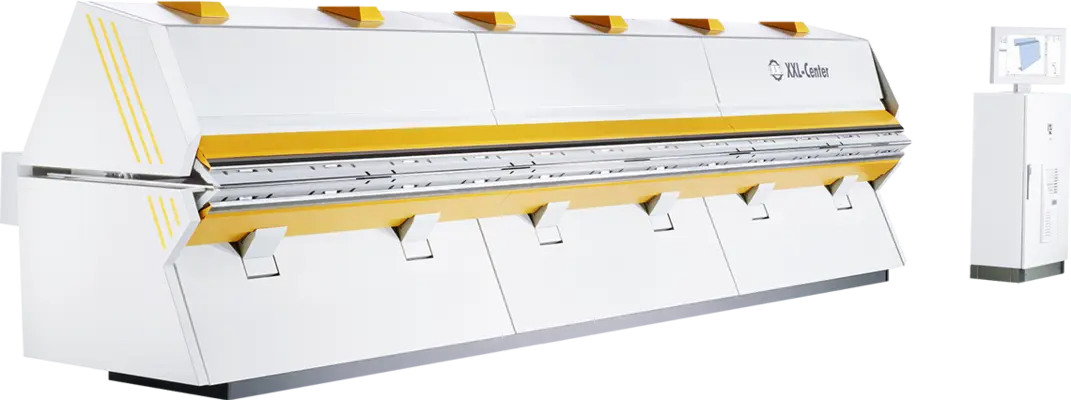

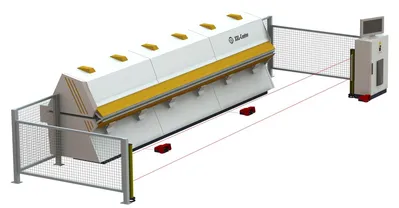

The XXL long folding center automatically inserts, squares, positions to the bend line, and folds the flanges up or down. No more rotation. No more complicated handling. No more second or third operator. The XXL-Center automatically produces precision long parts in record time.
XXL-Center Highlights:

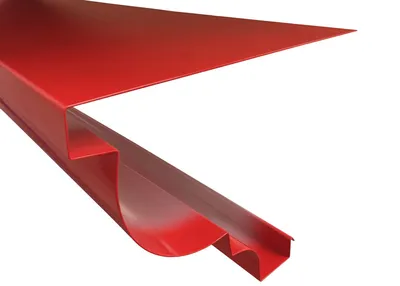

Machine for roof&wall profiles
Automatic inserting and positioning of blanks
Bending up and down
Scratch-free bending of sensitive materials
Large free spaces for maximum part design flexibility
Automatic bending sequences
Automatic 1-click part programming
High productivity
Working length max.: 6400 mm
Material thickness max (400 n/mm²): 1.5 mm
Material thickness max (700 n/mm²): 1.0 mm
Material thickness max (200 n/mm²): 2.0 mm
Free space in front of the beams up to: 300°
Blank loading tables: yes
Grippers: yes
Programming: automatic
Cut-module: optional
Machine dimensions: 8600 x 3500 mm
