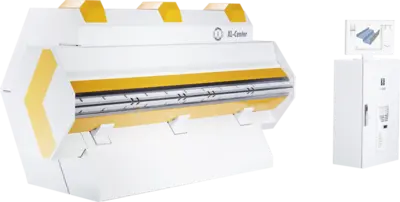

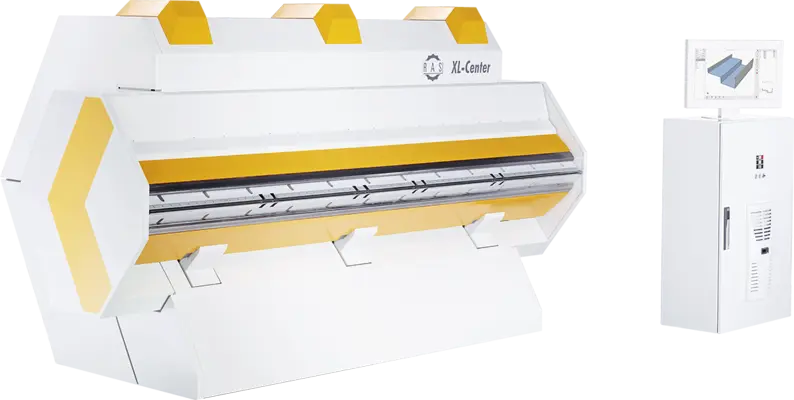

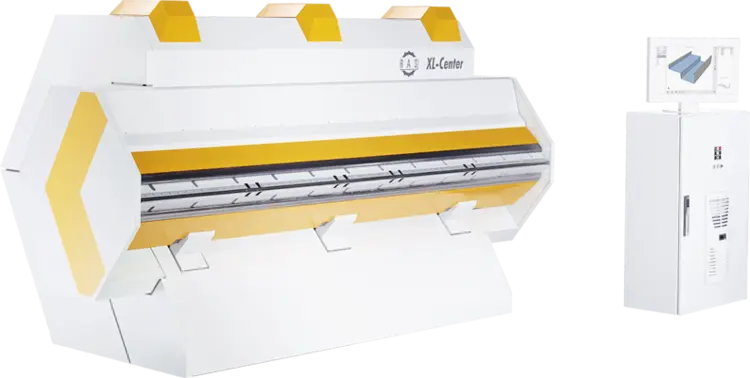

XL-Center
Have one to sell?
ConditionNew
1 available
New
The XL-Center is an affordable machine for bending roof and wall profiles, designed for ease of use. Our innovative Bendex software and intuitive design allows you to complete operations with less staff, helping you save money.
XL-Center Highlights:
Affordable machine for bending roof & wall profiles
Bending up and down
Material handling reduced to a minimum
Bending tapered profiles underline the extra class of the XL center
300 degrees free space allows for maximum part design flexibility.
Unparalleled folding speed due to five servo-regulated motors
Easy operation due to automatic 1-click part programming
No bending expertise required
Folding simulation in 2D or 3D
Bend angles up to 90 degrees
Bend angles more than 90 degrees
Folding length: 3200 mm
Material thickness max (400 n/mm²): 1.25 mm
Material thickness max (700 n/mm²): 0.75 mm
Material thickness max (200 n/mm²): 1.5 mm
Free space in front of the beams: 300°
Grippers: yes
Bending tapered parts: yes
Programming: automatic
Machine dimensions (normal setup): 5400 x 3700 mm

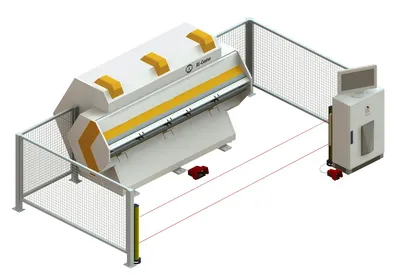

Machine dimensions (compact setup, higher fences): 3850 x 3700 mm
