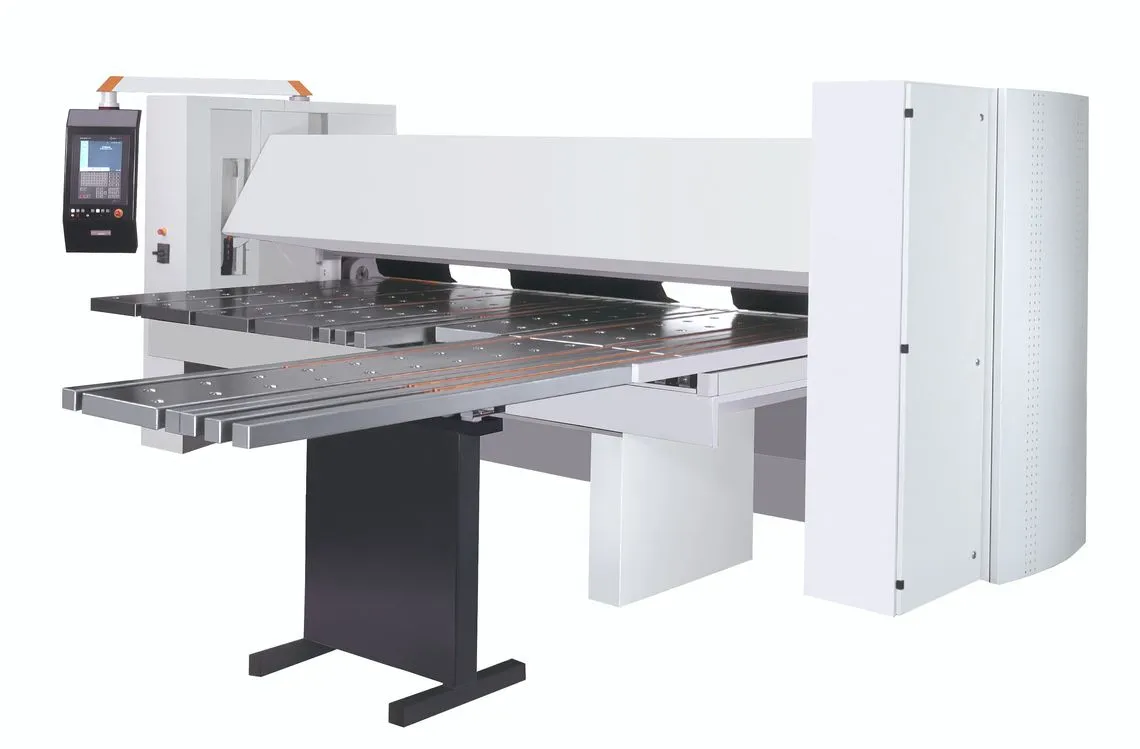

GIGAbend
Have one to sell?
ConditionNew
1 available
New
Straight bends are essential for perfectly folded parts. A sturdy and solid machine design powerfully resists the bending forces. An intelligent crowning system and 120 tons of clamping pressure ensure perfect folded parts on 6 mm mild steel or 4 mm stainless.
GIGAbend Highlights:
Ideal bending solution from 0.5 to 6 mm mild steel
Large free space for maximum parts design flexibility
Easy to handle
Bending of panels and profiles

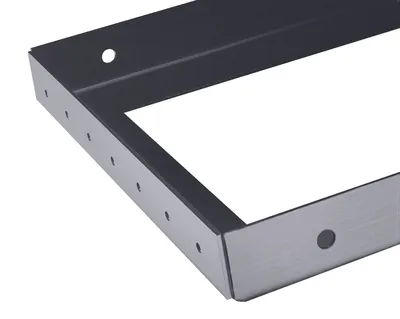

Bending any angles, radii, open/closed hems
Working length: 4060 mm
Material thickness max (400 n/mm²): 5.0 mm
Upper beam upstroke: 500 mm
Upper beam clamping pressure (metric): 120 tons
Gauging system (rectangular gauging system): 10-1550 mm
Gauging system (j gauging system): 10-4050 mm
Machine dimensions (rectangular gauging system): 5480 x 2430 mm
Machine dimensions (j gauging system): 5480 x 4890 mm
