PRIMEcut
Have one to sell?
ConditionNew
1 available
New

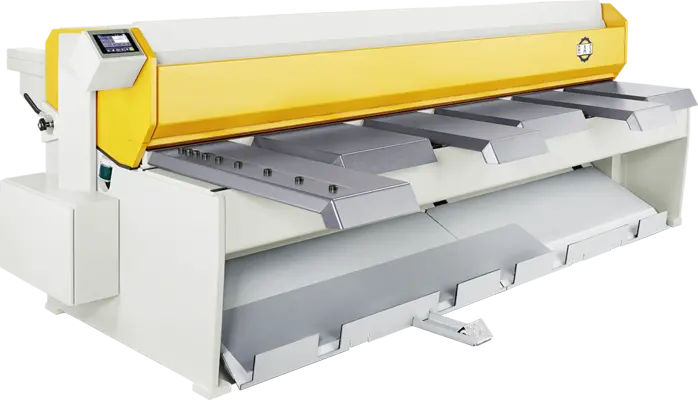

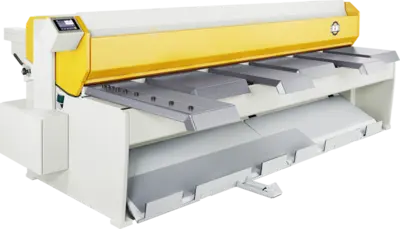

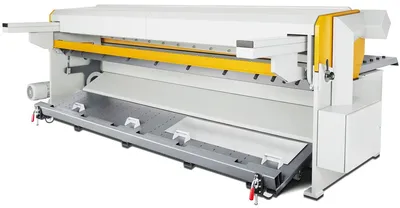

RAS has added a TouchScreen control to the PRIMEcut swing beam shear, thus giving optimum clearness on the monitor. With its 3 mm capacity and 3100 mm cutting length the RAS PRIMEcut combines all characteristics of a high performance, premium shear.
PRIMEcut Highlights
Swing beam cutting for accurate dimensions and straight cuts
Low rake angle for twist-free cuts
Long cutting blade lifetime
Sorting cut pieces during cutting (to the front or the rear)
Sheet support and sorting system reduces staffing needs
Cutting length max: 3100 mm
Material thickness max (400 n/mm²): 3.0 mm
Backgauge: 5-750 mm
Sheet support: yes
Part sorting: yes
Blade clearance adjustment: yes
Strokes/min: 28
Blade angle: 1.1°
Cutting technology: Swing beam
Machine dimensions (incl. table extension): 3920 x 2370 mm
