SMARTcut
Have one to sell?
ConditionNew
1 available
New

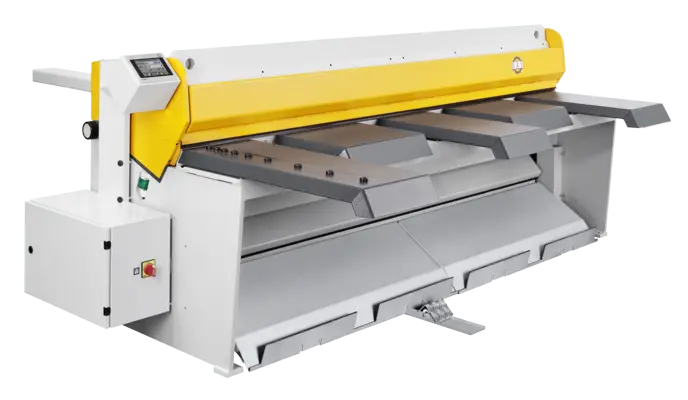

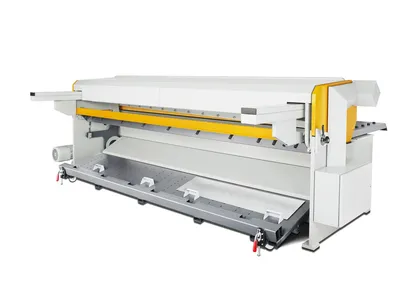

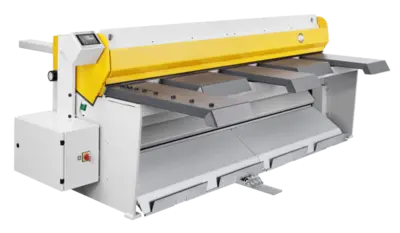

RAS has added a TouchScreen control to the SMARTcut swing beam shear, thus giving optimum clearness on the monitor. With its 3100×2 mm and 2540×2.5 mm the RAS SMARTcut models combines all characteristics of a high performance, premium shear.
SMARTcut Highlights:
Swing beam cutting for accurate dimensions and straight cuts
Low rake angle for twist-free cuts
Long cutting blade lifetime
Sorting cut pieces during cutting (to the front or the rear)
Sheet support and sorting system reduces staffing needs
Cutting length: 3100 mm
Material thickness max (400 n/mm²): 2.0 mm
Backgauge: 5-750 mm
Sheet support: yes
Part sorting: yes
Blade clearance adjustment: yes
Strokes/min: 36
Blade angle: 0.9°
Cutting technology: Swing beam
Machine dimensions (incl. table extension): 3750 x 2300 mm
