Lockforming machines SpeedySeamer

Description

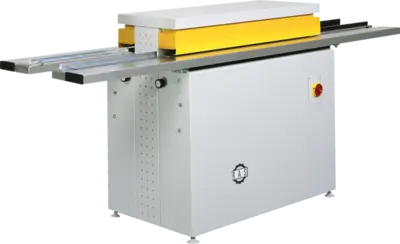

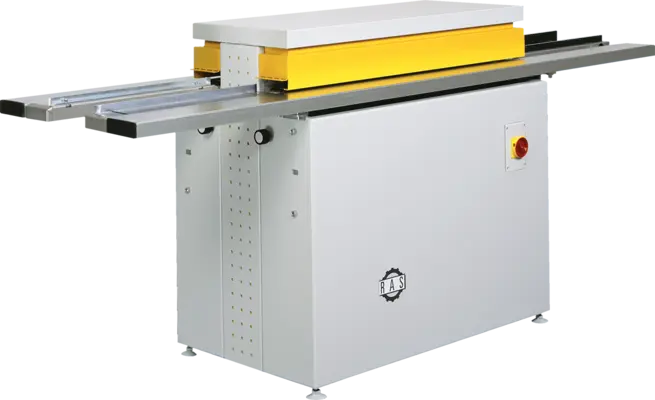

The RAS 22.07 SpeedySeamer with seven rollforming stations is a multi-functional and cost-efficient allrounder for the production of seams in the HVAC ducting industry. The top of the line RAS 22.09 SpeedySeamer is a 9-station high quality system.

SpeedySeamer Highlights
Rollforming of all common seams on air ducts and pipes
Economical, fast and profitable production in a single run
Two sets of roll can be set up at a time
Matching seams can be produced without any downtime

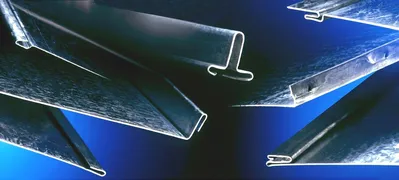

Combinations: Pittsburgh/Standing seam and Snap-lock/Cam-standing seam

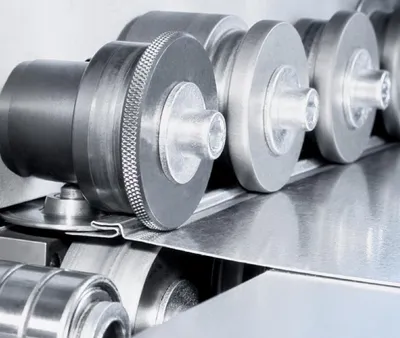

Durable rolls made of case hardened special steel
Table height adjustable to the sets of rolls
Machine adaptable for current and future applications
Wide gear box improves guidance and increases the seaming quality
Hardened run-in guides (reduced wear)
Run-in guides with pins (processing beaded sheets)
Adjustable roll for straightening or pre-rounding of seamed sheets
Improved safety due to height-adjustable covers
Small blank guiding system increases the application diversity
Lifting device avoids cracking of aluminum sheets
Rolls for stainless steel ducts available
