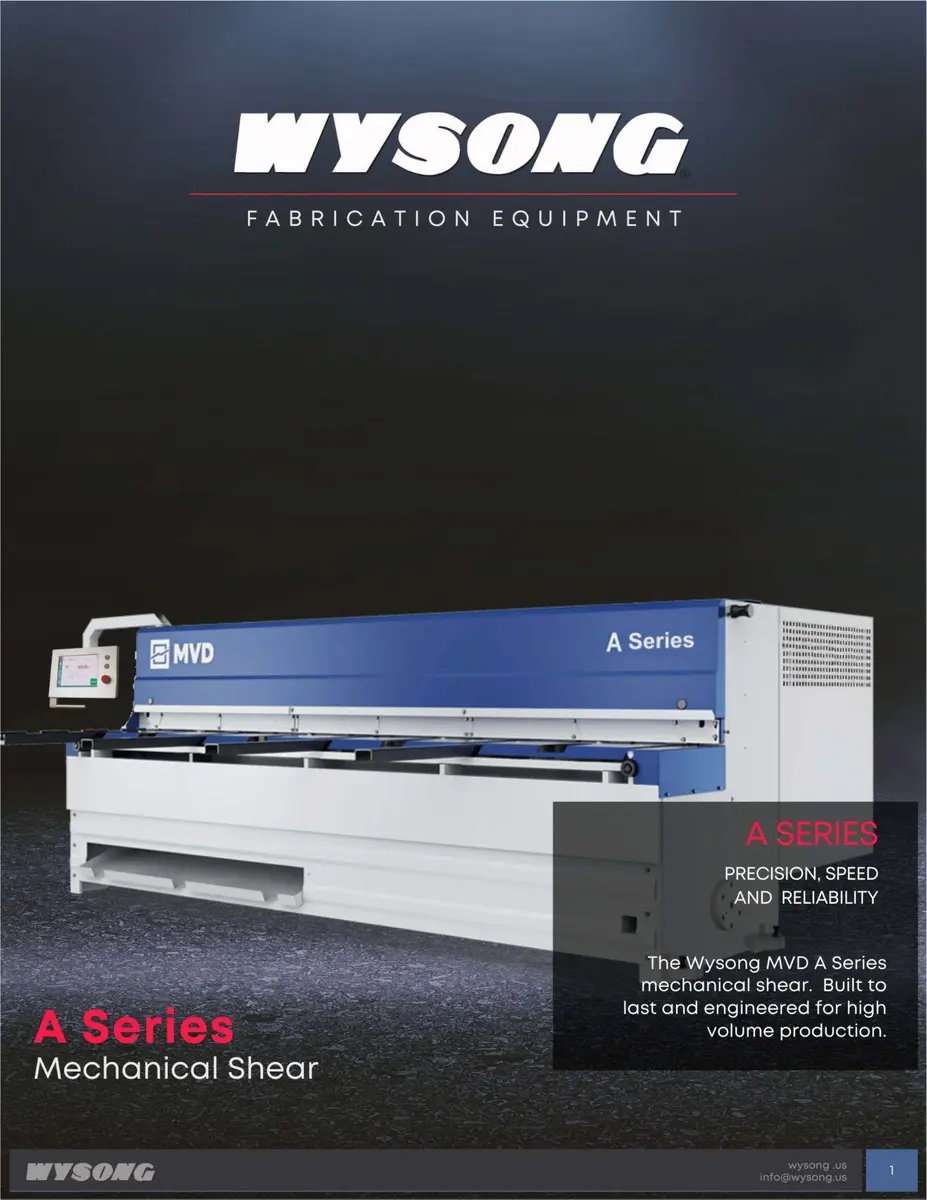

Wysong MVD A Series Mechanical Shear
Have one to sell?
ConditionNew
1 available
New

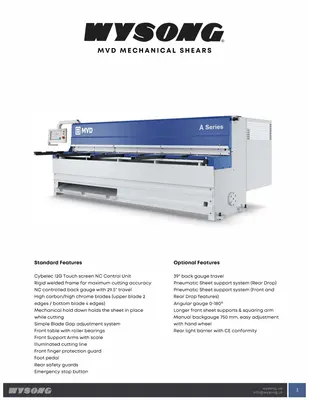

Standard Features

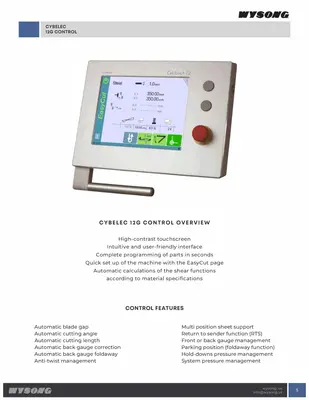

Cybelec 12G Touch screen NC Control Unit
Rigid welded frame for maximum cutting accuracy NC controlled back gauge with 29.5" travel
High carbon/high chrome blades (upper blade 2 edges / bottom blade 4 edges)
Mechanical hold down holds the sheet in place while cutting
Simple Blade Gap adjustment system
Front table with roller bearings
Front Support Arms with scale
Illuminated cutting line
Front finger protection guard
Foot pedal
Rear safety guards
Emergency stop button
Optional Features
39" back gauge travel
Pneumatic Sheet support system (Rear Drop) Pneumatic Sheet support system (Front and Rear Drop features)
Angular gauge 0-180°
Longer front sheet supports & squaring arm Manual backgauge 750 mm, easy adjustment with hand wheel
Rear light barrier with CE conformity

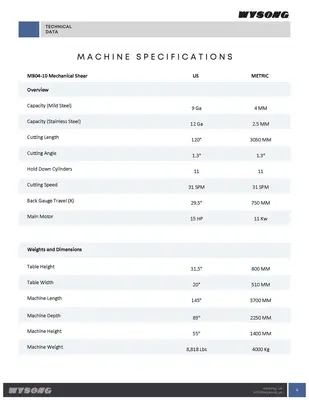

Cutting capacity mild steel: 9 Ga
Cutting capacity stainless steel: 12 Ga
Maximum cutting length: 120 inches
Fixed cutting angle: 1.3 degrees
Hold Down Cylinders: 11
Cutting speed: 31 SPM
Back Gauge Travel (X): 29.500 inches
Main Motor: 15 hp
Table Height: 31.500 inches
Table Width: 20 inches
Machine dimensions (L x W x H): 145 inches x 89 inches x 55 inches
Machine Weight: 8,818 lbs
