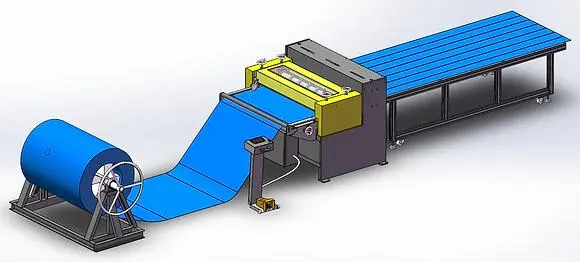

48” x 16 Ga, Gang Type Metal Slitter, Powered Slitter, 220V,1 phasewith NC programmable cut to length, 5” touch screen
Standard Features:
- ISO 9001 certified
- American design and Taiwan quality machine
- Slit and cut to length in one unit
- NC programmable cut to length, 100 job memory feature
- 5” Omron touch screen
- 3-1/8” diameter shafts mounted in precision ball sealed bearings
- Slitting blades are dual edged
- Safety type foot pedal control
- One year warranty for parts
Standard Equipment
- Comes with 6 sets of slitting blades
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
- Comes with 6 sets of slitting blades
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
- Comes with 6 sets of slitting blades
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
- Comes with 6 sets of slitting blades
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
Optional Equipment:
- 10ft Outfeed table #FT-10, 121”x49”x32” LWH……………………………………. call for pricing
- 10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself )…… call for pricing
- Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight....... call for pricing
DISCLAIMER Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. Specifications: PS-4816GT Slitting and shearing capacity: width x thickness mild steel(hot roll) Tensile 60,000PSI stainless steel & cold roll, tensile 85,000PSI soft aluminum, tensile 28,000PSI min. thickness Max. slitting length 48”x16Ga 48”x20Ga 48”x12Ga 30Ga 20ft, NC programmable Shearing blade length 50” Shearing blade rake angle 2 degree Infeed/outfeed table height 32” Slitting blades 6 pairs Slitting feed speed Shearing stroke 57 FPM 35 Slitting capacity: Number of cuts / strips 16Ga mild steel 18Ga mild steel 20Ga mild steel 22Ga-24Ga mild steel 26Ga-30Ga mild steel 1 cut / 2 strips 2 cuts / 3 strips 3 cuts / 4 strips 4 cuts / 5 strips 6 cuts / 7 strips Slitting motor Shearing motor 3HP, 220V,1phase 3HP, 220V, 1phase Amperage draw 25A Decoiler specifications Manually operated For coil size 48” width, 20” coil ID, Max coil weight 2T = 4,500LBS Dimensions: 71”x32”x39-1/2” Machine weight Shipping weight 2,850LBS 2,950LBS Machine dimensions LxWxH Shipping dimensions LxWxH 68” x 63” x 48” 70” x 65” x 51”: 13" 8.86" " 13" x 18.9" 11" x 10" 13" 8.86"
