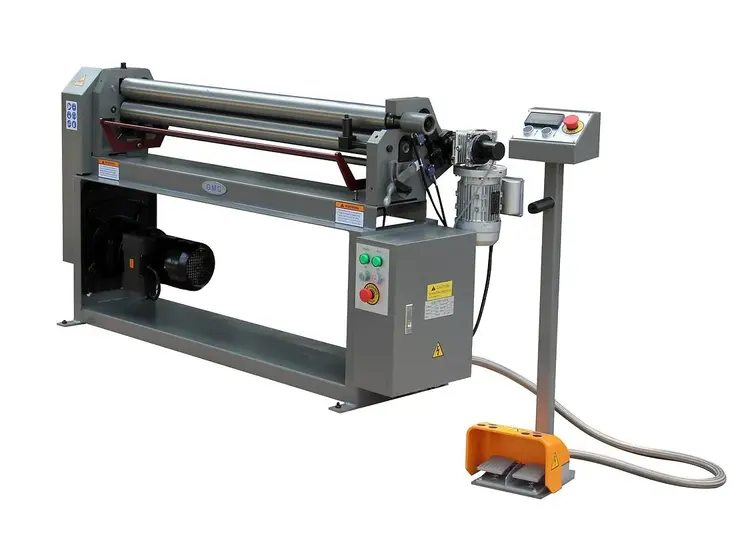

GMC Slip Roll Machine 50" x 14Ga. - Power Bending roll up/down with push button
Have one to sell?
ConditionNew
1 available
New
This machine has a 2 HP Motor, rated at 220V, Single Phase. Min. roll bending dia. capacity 3.5"
Standard Features
- ISO 9001 certified
- Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
- One handle to control pinch roll up/down, more convenient and efficiency
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1/4” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
Standard Equipment
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
Rolling capacity:: Mild steel 50"x14Ga.- Stainless steel 50"x18Ga.- Soft aluminum 50” x 10Ga -Min. thickness capacity 50"x26Ga.
Rolls size, length x dia: 50”x 3”
Min. roll bending dia.: 3 1/2"
Rolls speed: 201” / min.
Rolls opening: ¼”
(3) grooves sizes: 5/16”, 3/8” , ½”
Main motor: 2 HP, 220V, 1ph
Net weight: 985 LBS
Machine dimensions, LxWxH: 68x32x49”
