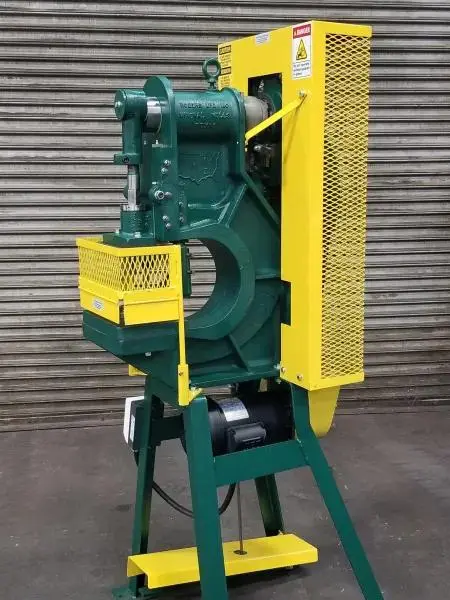

ROGERS PUNCH PRESS #20- 15 TON

Description

Punch Capacity – 15 Tons

Punch 7/8 Round hole thru 1/4″ mild steel

Stroke 2″

Shut Height 6-1/2

Dimensions

- Cast frame – high tensile ductile iron.
- Operates on 1 HP, 1725 RPM motor. Three phase or single phase available.
- Foot operated, one stroke safety clutch.
- Punching and forming can be done.
- Bar hole for lowering punch by hand.
- Comes equipped with guards for operators protection.
- Approximately 48 strokes per minute.
- 10″ throat depth.

Accessories Sold Separately

PIPE NOTCHER

SPEAR POINT

COPER

SQUARE TUBING CUTTER

ANGLE IRON NOTCHER

PUNCH OILING SYSTEM

-
