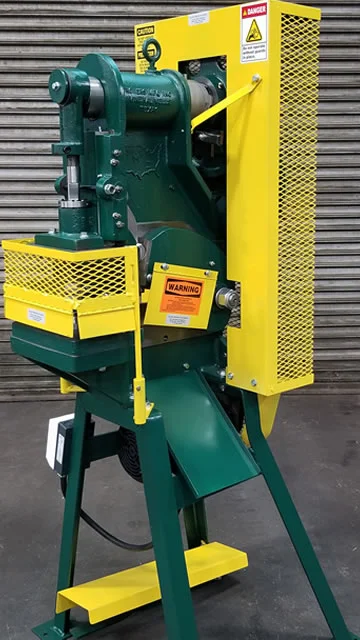

ROGERS Presshear #10 18TON

Description

Shearing Capability

- 2x2x1/4 Angle
- 3/4 Round
- 3/4 Square
- 1/4×4 Flat
- 2×1/2×1/8 Channel
- Cap Rail

Punch Capacity – 18 Tons

- Punch 7/8 Round hole thru 1/4″ mild steel
- Stroke 2″
- Shut Height 6-1/2

Dimensions

- This machine is both a punch and a shear.
- Cast-frame – high tensile ductile iron.
- Operates on 1 HP, 1750 RPM motor. Three phase or single phase available.
- Foot operated, one stroke safety clutch.
- Front is conventional press and can be used for punching or forming.
- Regular die sets will fit this machine.
- Adjustable ram.
- Blades are tool steel – Can be re-sharpened and adjusted.
- Punch to back of throat – 3″.
- Bar hole for lowering punch by hand.
- Blade guard, foot lever guard, and gear guard for operators protection.
- Approximately 48 strokes per minute.
