KAAST CNC PRESS BRAKE HPB 37220 12'

Description

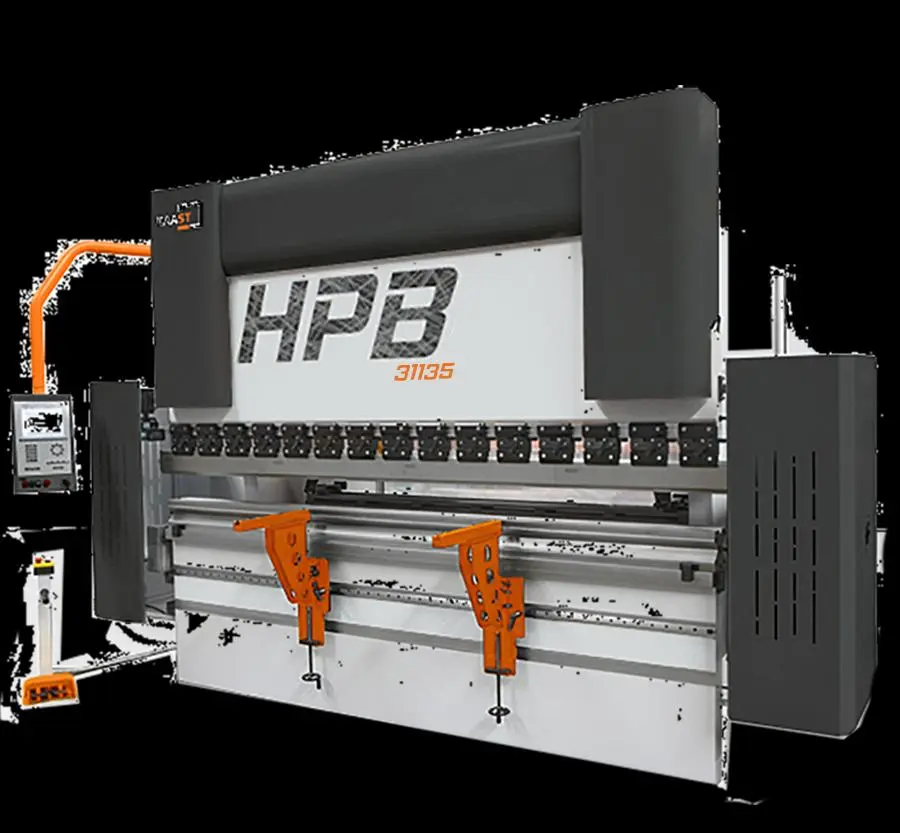

HPB 37220 3 Axes CNC Press Brake 12’x242 ton

The HPB Hydraulic Press Brake is perfect for complicated, sensitive, single, or multiple Bendings at high speed. This machine is among the highest rated CNC press brakes for helping to increase productivity and lower costs by utilizing a user-friendly Cybelec computer numerical controller and HOERBIEGER hydraulics.

Combining speed and power results in high quality and repetitive bending through synchronized cylinders and valves. Featuring automatic utilization of all axes on startup, these machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest technology. The rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm (0.0004”). CNC controlled servo drive high precision ball screws provide precise results for long and deep bends. The long lasting rigid body is also suitable for heavy duty applications and is easy to maintain.

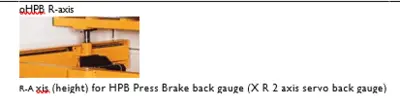

The included 2 axis ultra strong back gauge system (X=800 mm (31”) and R), with ± 0.01 mm (0.0004”) repeatability, moves along rails and ball screw, with the bending length CNC controlled and foldable back gauge fingers for reverse bending applications.

The Chrome coated cylinders are machined with 0.001 mm (0.00004”) precision and the pistons are specially hardened. Quick release clamping system, Promecam type top clamps, can be easily loaded & unloaded. Lower clamps are also user friendly and machined with high precision. Front support arms slide along machine length and are easy to adjust. Two photocells are on the sides for rear guarding. Optic linear scales are sensitive up to

± 0.01 mm (0.0004”). Multi-functional and highly programmable touchscreen Delem DA-58T controller. SIEMENS electrical system. Side guarding is standard, meeting CE regulations.

Standard Configuration

- Adjustable height and sliding front support arms
- Top and bottom tools are surface hardened by special treatment
- Promecam quick clamping system Delem DA-58T
- CNC controlled strong 800mm back gauge
- 410 mm (16") throat depth 2-piece back gauge fingers Scales in metric and inches
- Foot pedal is produced according to CE standards and suitable for single and multiple bendings
- 2 photocells are placed facing each other for rear and side guards
- Covers for cylinders and top beam
