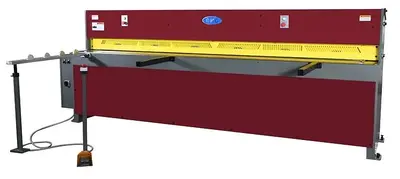

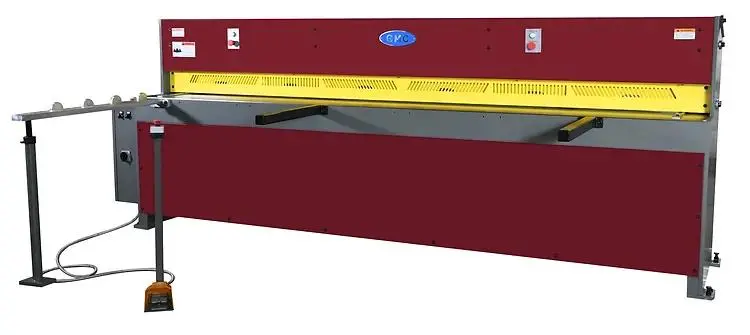

EPS-0810M, 8' x 10 Ga. Mechanical Shear - Shearing Machines
SKU: EPS-0810M
Shop our 8-foot mechanical shears that are capable of cutting up to 10-gauge mild steel and 14 gauge stainless. Our
Standard Features
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 30 strokes per minute
- 60” long squaring arm with inch / mm scale
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
Standard Equipment
- 26” manual back gauge with one side handwheel
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
Blade Lenght: 98"
Strokes per minute: 26
Worktable height: 32"
Front support arm: 36"
Back gauge: 26" Manual Back gauge
Blade Rake Angle: 2.5 Degree
Main Motor: 7 1/2HP, 3 Phase 25A Prewired: 220VAC (15A/440VAC optional)
Machine weight & Shipping weight: 6,650 lbs. & 6,750 lbs.
Machine dimensions & Shipping dimensions: 124" x 43" x 68" & 126" x 43" x 67"
Cutting Capacity: 8' x 10Ga.
