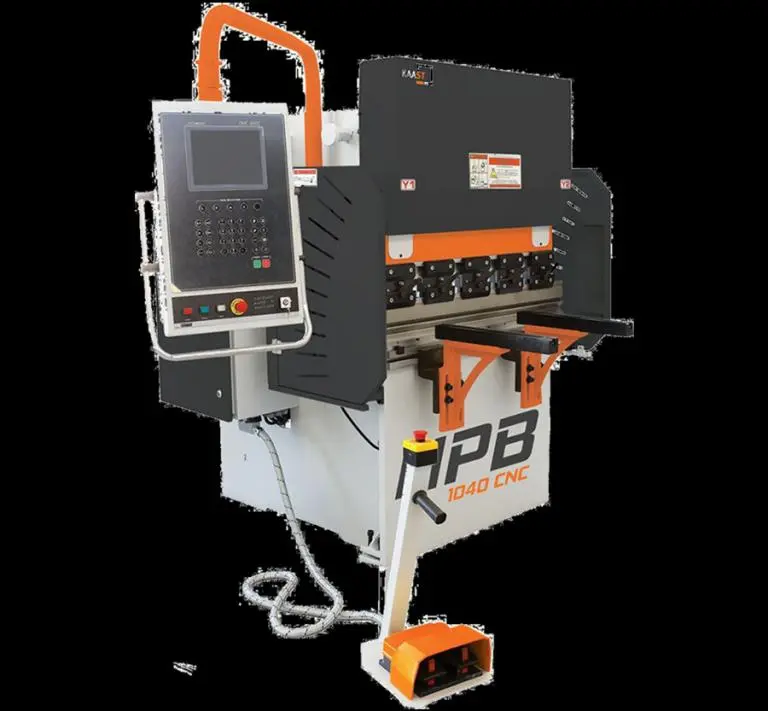

KAAST CNC HYDRAULIC PRESS BRAKE 1040

Description

HPB-1040 Press Brake Machine is the perfect CNC solution for complicated, sensitive, single, or multiple bends at high speed. This CNC bending machine is among the highest rated CNC press brakes for helping to increase productivity and lower costs by utilizing a user-friendly computer numerical controller and hydraulic maintenance. It allows you to have more production capacity and eliminates wasted time during production.

Press Brake Key Features:

Metal press brakes ensure high-quality, repetitive bending using synchronized cylinders and valves. The automatic utilization of all axes on startup streamlines the operational process. The CNC press brake machines are designed with SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest technology. The rigid upper beam runs on 8-point bearings, achieving an impressive bending precision of 0.01 mm.

Both top and bottom tools are crafted for durability and hardening to ensure precise bending with this press brake machine. The quiet high-pressure pump and specially designed backgauges help with multi-functional and sensitive bending in complex parts. A CNC controlled servo drive with high-precision ball screws that achieve precise results for long and deep bends. The crowning system provides flexibility to the press brake, making it suitable for heavy-duty applications with its durable and rigid body. Easy maintenance is facilitated by a range of general features.

General Features:

Chrome-coated cylinders exhibit 0.001 mm precision, contributing to the overall accuracy of the machine. The user-friendly and high-precision clamps enhance ease of use during operations. Adjustable front support arms simplify the adjustment process, adding to the convenience of the press brake machine. The compact design, coupled with HOERBIEGER hydraulics meeting CE standards, ensures compliance with safety regulations. Also, for safety measures, there are two photocells on the sides that serve as rear guards.

Quick tool tightening, optic linear scales sensitive up to ±0.01 mm, and a quick-release clamping system further help the hydraulic press brake efficiency. The CNC controlled 2-axis ultra-strong backgauge system with high repeatability adds precision to positioning. The multi-functional and programmable [Delem DA-58T](https://www.delem.com/en/solutions/pressbrake-controls/da-50-series/da-58t)touchscreen graphical control, combined with the SIEMENS electrical system, elevates the machine's overall control capabilities. Automatic axis referencing on machine startup enhances user convenience. The standard side guard meets CE regulations, ensuring adherence to safety standards.

Press Brakes Standard Configuration

- Front support arms adjustable for height & spacing
- Top and bottom tools are surface hardened
- Promecam quick clamping system
- Delem DA-58T touchscreen graphical control
- CNC controlled 800mm (31”) back gauge
- 410 mm (16”) throat depth
- 2-piece back gauge fingers
- Scales in metric and inches
- Foot pedal is suitable for single and multiple bendings
- 2 photocells are placed facing each other for rear and side guards
- Covers for cylinders and top beam

Press Brakes Optional Configuration

- Special stroke and throat depth
- Special back gauge fingers
- Motorized crowning system
- Hydraulic oil heating and cooling
- Custom made table width and bottom tool V openings
- Optional top and bottom tools in different length
- Special tools for box and pole bending
- Laser front support options
- WILA top clamping and bottom tool holders
- Rol 1 and Rol 5 quick promecam release
- U type special bottom tools for bending thick materials
- Additional front support arms
- AP3/AP4 front sheet support arms
