ROLLFORMER Custom Rake Trim Machine
Have one to sell?
ConditionNew
1 available
New
Custom RAKE TRIM Machine with variable speed AC Drive Motor System and Pneumatic Powered rear profile
shear (90 – 110 psi), 416 grade stainless steel forming rolls, 303 grade 1 ¼” Ø stainless steel shafts with sealed
bearings, to 80 - 100 FPM speed. .019” Painted Aluminum, typical 10’ lengths.

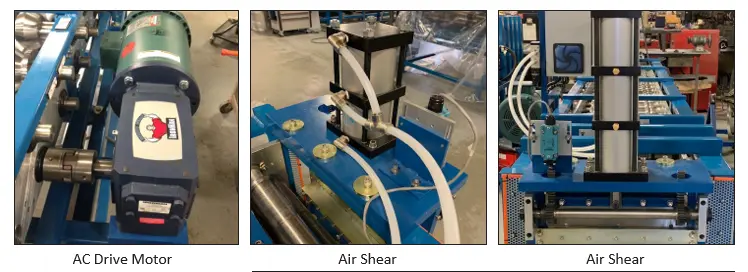

- AC Drive Motor
- Air Shear
- Optional Digital Controller SLC-1200 with AC Drive System
Diameter Stainless Steel Shafts: 303 Grade 1.25’’ diameter with sealed bearings
Speed: 80-100 FPM
Motor power: AC Drive motor System 2 HP 220 V 3 Phase Variable Speed AC Drive Motor System
Shear: Pneumatic Powered rear profile shear (90-110 psi)
Transmission: # 40 Chain and Sprocket / Spur Drive with Gearbox
