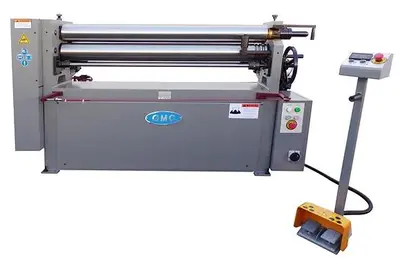

GMC POWER BENDING ROLLS 4' x 3/16

Description

PBR-04316E, Power Bending Rolls 4' x 3/16"

This machine has a 3HP Motor, rated at 220V three phase. Power bending roll up/down w/push button & display.

Standard Features

- SO 9001 certified
- Taiwan machines
- All (3) rolls are hardened rolls, up to 50-52 HRC
- 3-rollers are driven to perform high accuracy
- Adjustable cone attachment included
- 3/8”, ½” and 5/8” grooves on rollers
- One wheel one-side operated for bending roll
- One wheel one-site operated for pinch roll (E model is powered)
- Heavy duty casting frame
- Heavy duty all steel welded construction
- 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
- Quiet running operation
- Easy swing-out top roller
- Safety line all around the machine for emergency stop
- All rolls run forward and reverse
- Safety type forward/reverse foot pedal
- Power source 220V, (option: 440V, 3 phase)
- One-year industrial warranty for parts

Standard Included Equipment

- Adjustable cone attachment
- 3/8”, ½” and 5/8” grooves on rollers
- All (3) hardened rolls
- Removable safety foot pedal
- Operation & parts manual
- Orange color front cover is optional.
- E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
