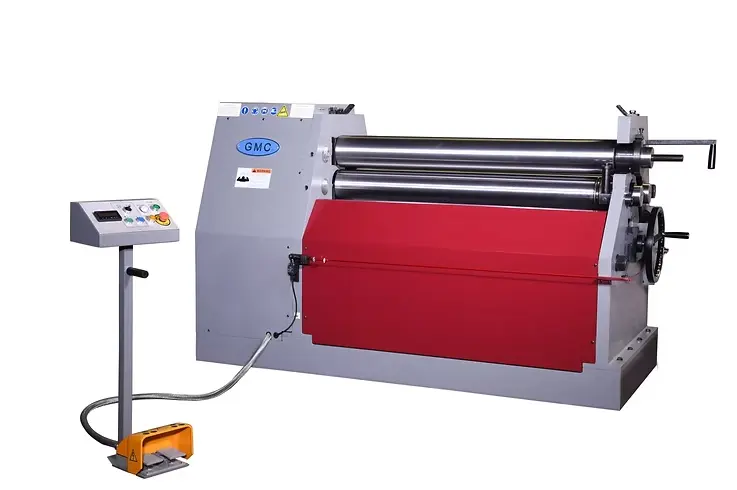

GMC HBR-0808, 8' x 8-gauge Plate Rolls - Metal Rolling Machines
Have one to sell?
ConditionNew
1 available
New
HBR-0808, 8-foot plate rolls are made for bending and rolling 8-gauge metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high-grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.
Standard Features
- ISO 9001 certified
- Taiwan Machines
- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC
- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high-grade alloy steel
- All rolls run forward and reverse · Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V, 3 phase)
- One-year industrial warranty for parts
Standard Equipment
- LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal and tool box
- Cone attachment (to make cone parts)
- (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
Roll Capacity:: Mild Steel- 8' x 8Ga., Stainless Steel- 8' x 12 Ga., Soft Aluminum-8' x 1/4", Min. Thickness- 22Ga.
Min. Roll dia.: 7 1/2"
Rolls Length: 8' 4"
Rolls Dia.: 6 1/2"
Pre-bend: 0.12"
Rolls speed: 5 RPM
Rolls Opening: 2 1/32"
Oil Tank Cap.: 245L = 12 Gal
Main Motor: 7 1/2 HP 25A/220V or 15A/440V
Weight: 8,150 lbs.
Dimensions: 142" x 38" x 58"
