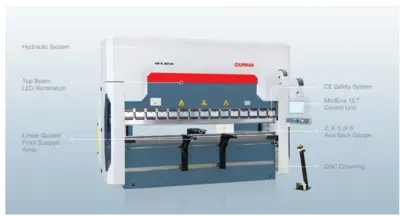

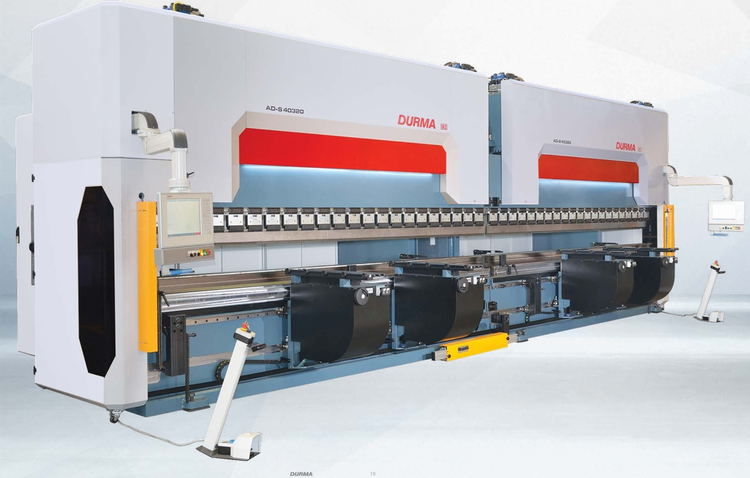

AD-S Press Brakes
AD-S Series press brakes, designed with high technology to increase efficiency on precise part bending. With Easy-to-use control unit, stabile body structure, perfect design, low operating cost, different tool usage options, maximum safety standards, DURMA press brake is the best in the world in its segment.
Bending performance is increased by using high quality European clamping system and easiness to use. DURMA is your solution partner with various tool options
DURMA provides the best level of service and spare parts with qualified personnel and spare parts in stock. Therefore, with DURMA press brakes you can always achieve perfect result.
General Specifications
- High sensitivity, Stress relieved steel construction body, long life Mono Block Frame
- Automatic calibration and first start up
- DURMA designed and copyrighted guiding system
- Ball Screw and linear guide integrated perfect back gauge system
- Durable, long life and sensitive bending capable special hardened top tools
- Suitable for segmented tools special and fast tool holding system
- Sensitive solutions on Long and deep bending
- High accuracy linear scales
- CE safety standards
- Best quality worldwide accepted hydraulic and electric components
Strong Back Gauge Systems
- Fast and high accuracy
- Safe movement Resistance to crash
- Maintenance free
- Adjustment availability at every point
Standard Equipment
- Y1, Y2, X, R (4-Axis) X=650mm X,R (AL - double gayt )
- Control Unit - CNC ModEva15T
- D-BEND 3D CAD/CAM Importing & Simulation Program
- Servo motor back gauge & linear guided & ball screw system (X-R)
- CNC crowning
- European style tool clamping system
- Sliding front arms (With T-Slot and stopper)
- World standards special design hydraulic block and valves
- World standard electric equipment
Optional Equipment
- F1-F2 Front feeding system with supports 3 meters- pneumatic pushers (2 Feeding + 2 support)
- Control unit - Mod Eva Premium, 69T and 66T
- CE Manuel F. AKAS II M FPSC-B-C + safety covers with switch
- CE F. AKAS-LC II AKAS-3 M Motorized + FPSC (safety PLC)

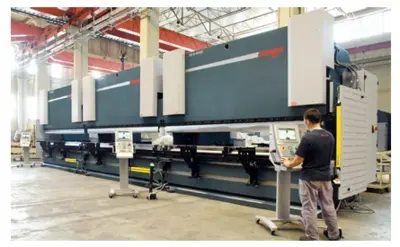

- CE BLVT safety – only for tandem machines
- Z1, Z2 axis
- X1, X2 axis
- R1, R2 axis
- Delta X axis +/- 125mm with CNC Controlled
- X axis = 1000 mm – light barrier back protection
- AP3-AP4 sheet following system
- Height adjustable laser angle measurement system
- Quick release clamping system
- Hydraulic and pneumatic tool clamping systems
- Bottom and top tools Bottom tool separation system
- Parking area
- Central lubrication system
- Oil cooler
- Additional back gauge finger and sliding front support arms Special packing for overseas shipments
BENDING FORCE: 220TONS
Distance Between Columns: 3600mm
Stroke: 265mm
Daylight: 530mm
Throat Depth: 450mm
Table Height: 900mm
Table Width: 104mm
Y Rapid Speed: 140mm sec.
Y Working Speed: 10mm sec.
Y Return Speed: 140 sec.
X As Working Speed: 500mm sec.
R Axes Working Speed: 350mm sec.
R Axes Working Distance: 250mm
X Axes Distance: 650mm - 750mm -1000mm
Motor power: 22kw
Weight Approx.: 12250kg
Bending Length: 4050mm
