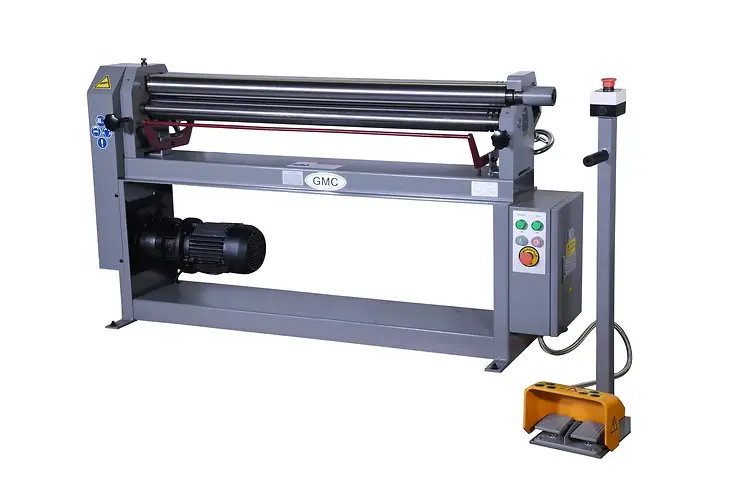

PSR-5014-1PH Slip Roll Machine 50" x 14Ga. 2hp

Description

Standard Features

- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- Not intended for rolling rods in high production (see our PRB-model)
- One year warranty for parts

Standard Included Equipment

- Electrical cabinet
- Removable safety foot pedal

Specifications

Rolling capacity:

Mild steel.........................................50"x14Ga..

Stainless steel.................................50"x20Ga.

Soft aluminum.................................50” x 10Ga

Min. thickness capacity...................50"x26Ga.

Rolls size, length x dia

Min. roll bending dia.

capacity

50”x 3”

3 1/2"

Rolls speed

201” / min.Rolls

opening

¼”

(3) grooves sizes

5/16”, 3/8” , ½”

Main motor

2 HP, 220V, 1ph

15amps

Net weight

932 LBS

Machine dimensions,

LxWxH

68x29x48”
