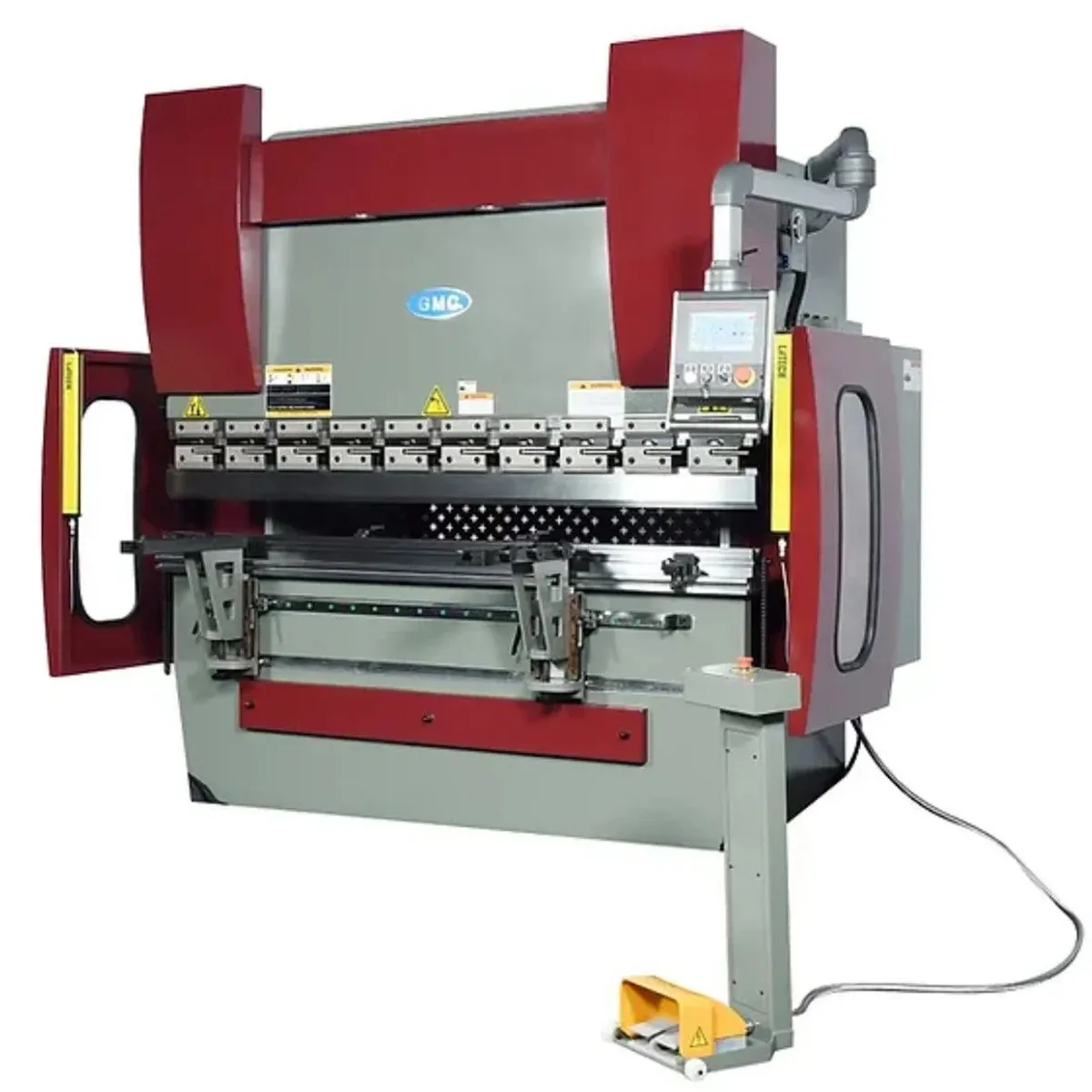

HPB-7006 CNC, 70-Ton 6’ CNC Press Brake with 2-Axis ESA S625 CNC Controller

Description

HPB-7006CNC, 70-Ton 6’ CNC Press Brake with 2-Axis ESA S625 CNC Controller

SKU: HPB-7006CNC

Our 70 ton press brake are equipped with a two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.

Standard Features:

- ISO 9001 certified
- Meet OSHA and CE safety standard
- ESA (Italy) Model 625, 2 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- Hydraulic crowning
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One-year industrial warranty for parts

Standard Equipment:

- ESA (Italy) Model 625, 2 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning
- Quick release segmented (American Style Tooling) punch holder
- Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard

Optional Equipment:

- For ¼” tooling: Need single V die holder -call for pricing
- 4’ of punch and 2.5” single V Die , Flame hardened with safety tang-call for pricing
- On-site training, one day…………………………….. -call for pricing

Specifications:

Maximum Pressure.....................................70 Tons

Bending Length Capacity............................80" (6'8")

Distance Between Uprights (housing).........63"Ram Stroke Travel

Cylinder Travel............................................6"

Adjustment (max)........................................3 1/8"

Table Width.................................................6"

Distance Between Table and Ram.............15 1/4"

Max Stacked Tooling Height.......................8-1/2"

Throat Depth..............................................10"

Back Gauge Distance.................................24"

Back Gauge Repeatability..........................0039"

Y-Axis Repeatability....................................0039"

Approach speed, inch / second..................3.14”

Working speed, inch / second....................0.35”

Return speed, inch / second......................2.36”

Main motor:................................................7-1/2 HP, 3 Phase 30 AMP Prewired: 220VAC (+/- 10%)

Servo motor for back gauge:......................1 HP, 3 Phase 220VAC (+/- 10%)

Servo motor for bending angle setting.......1/2HP, 3 Phase 220VAC (+/- 10%)

Hydraulic oil tank capacity:.........................52 Gal.

Recommended Oil:.....................................Hydraulic Oil Shell #68HD

Machine weight:..........................................8,650 LBS

Machine size, L x W x H:............................103" x 63" x 87”

Shipping Dimensions:.................................109"x66"x98"
