F12 Oblong Punch - No Keyway
Have one to sell?
ConditionNew
1 available
New
All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55 Oblong Dies.
Additional Information

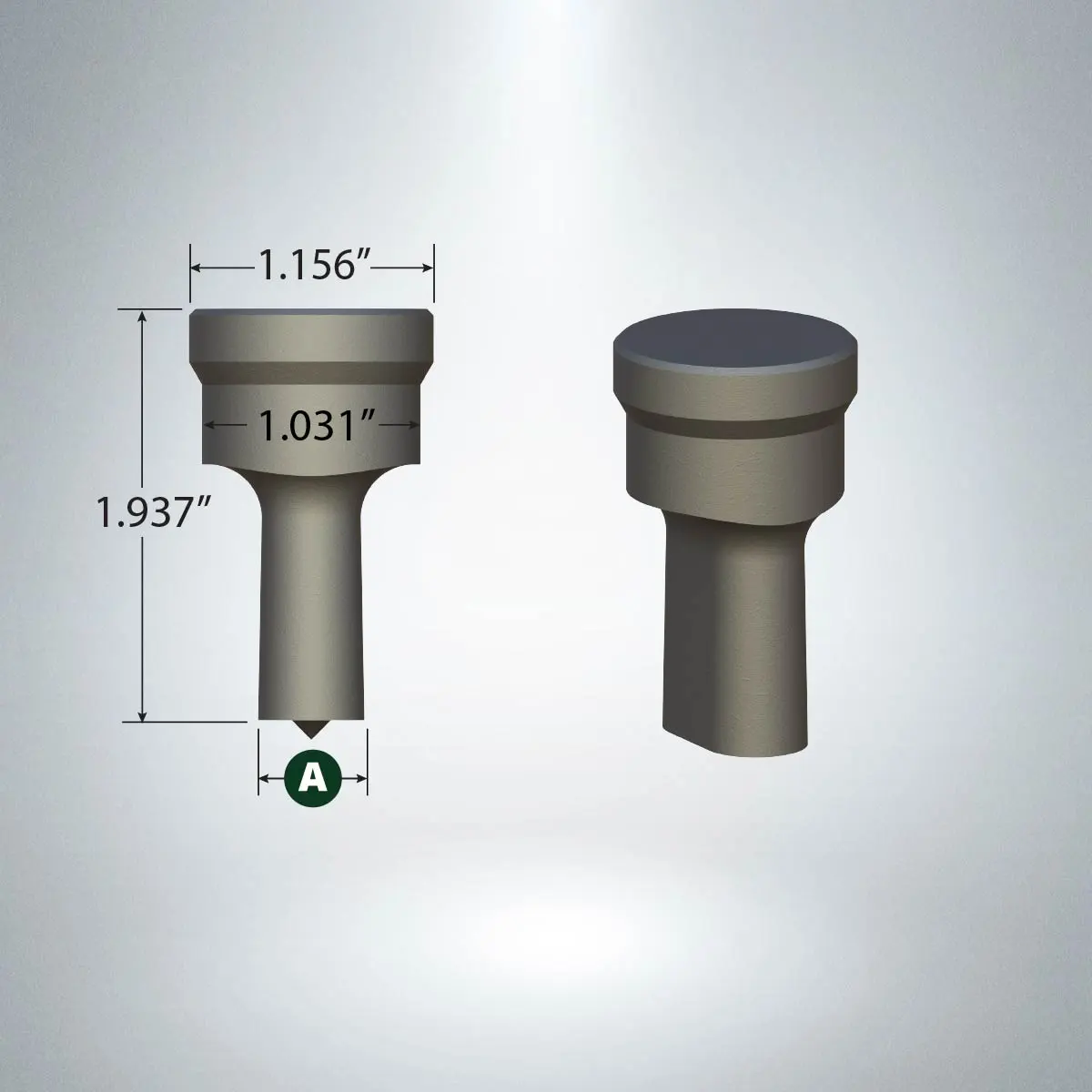

Dimensions: Head Diameter: 1.156" Body Diameter: 1.031" Overall Length: 1.937"

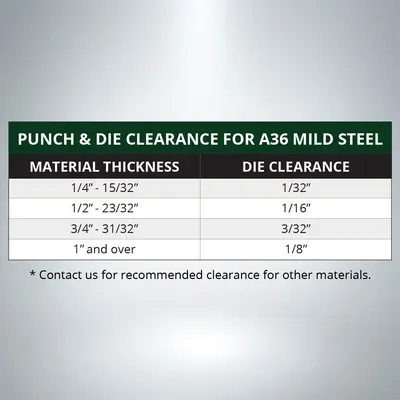

Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:
F12 Punch
AP-116, CST-216, GFM-34, PIR-DE
Proudly Made in the USA
