1/2" AP-119 Round Punch for Ironworkers

The AP-119 Round Punch is used for punching holes in mild steel, stainless steel, and other metals. Compatible with various ironworker machines such as Piranha™, Edwards™, and more. Paired with AP-313 Round Die.

Punches are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. Ideal for fabrication, maintenance, and manufacturing shops.

Punch & Die Clearance:
Use the chart in the image carousel above to determine recommended die clearance. The punch and die should NOT be the same size.Specifications:

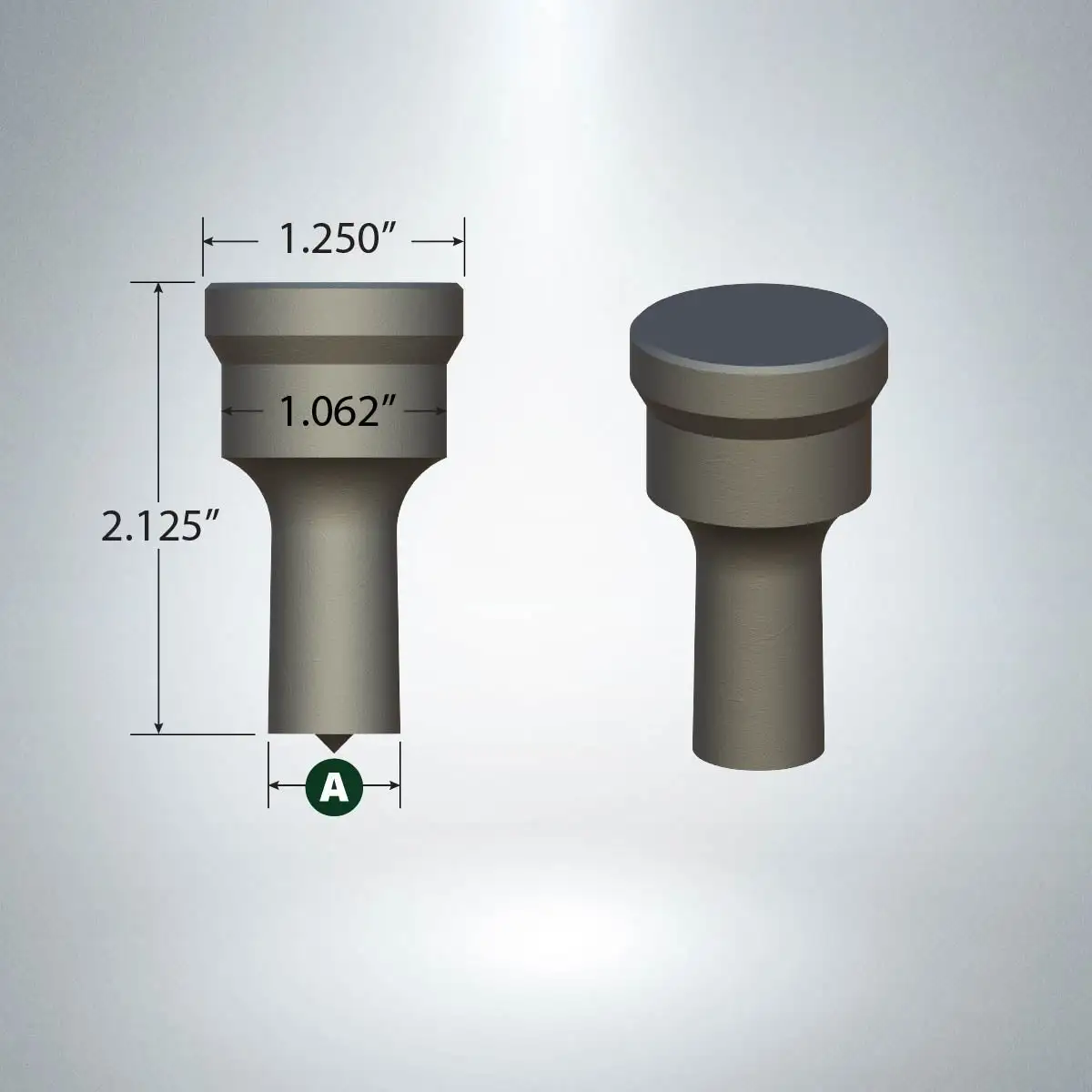

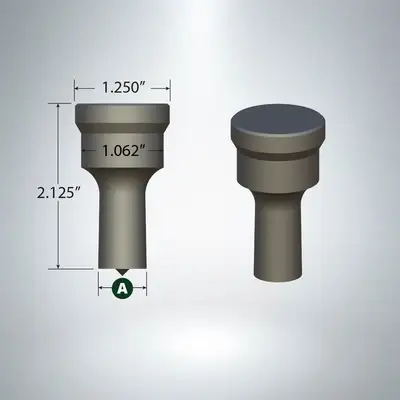

AP-119 Punch: 1.250" head diameter, 1.062" body diameter, 2.125" overall length
AP-119 Punch size cannot exceed 1-1/8". Contact us for any custom sizes (1/64" increments, millimeters, etc.)

Replacement For:

Cleveland Steel Tool™ (CST-219 punch)
Cleveland Punch & Die (F16 punch)
Piranha™ (PIR-DH punch)

Punch is Compatible for the Following Machines:

Cayman™
Edwards™
Hawthorne™
Megaworker™
Nelson™
Omes™
Peddinghaus™
Piranha™
Pittsburgh™
Polmaco™

Proudly Made in the USA
