13/16" PIR-DH Round Punch for Piranha™ Ironworkers

The PIR-DH Round Punch is manufactured for Piranha™ ironworker machines, used for punching holes in mild steel, stainless steel, and other metals. The PIR-DH Round Punch is standard for 65 ton and smaller Piranha™ models. Paired with PIR-JB Round Die.

Punches are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. Ideal for fabrication, maintenance, and manufacturing shops.

Punch & Die Clearance:
Use the chart in the image carousel above to determine recommended die clearance. The punch and die should NOT be the same size.

Specifications:

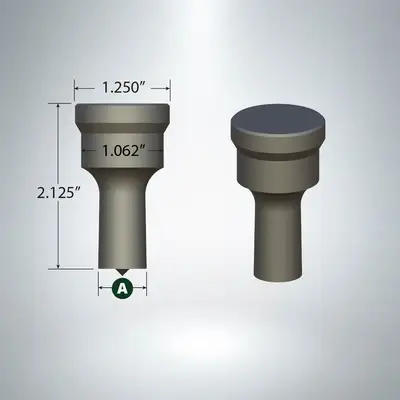

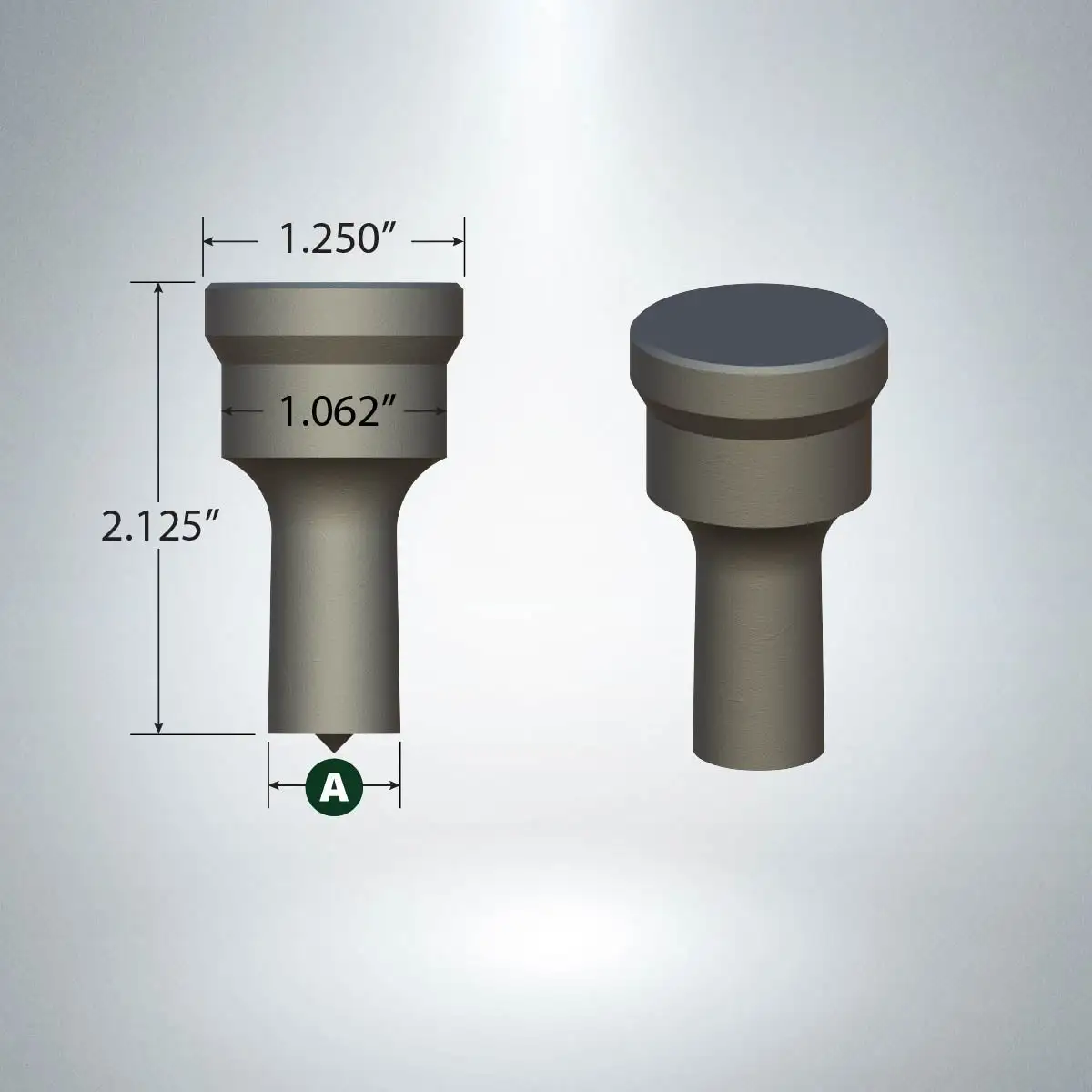

PIR-DH Punch: 1.250" head diameter, 1.062" body diameter, 2.125" overall length
PIR-DH Punch size cannot exceed 1-1/8". Contact us for any custom sizes (1/64" incriments, milimeters, etc.)

Replacement For:

American Punch™ (AP-119 punch)
Cleveland Punch & Die (F16 punch)
Cleveland Steel Tool™ (CST-219 punch)

Punch is Compatible for the Following Machines:

Piranha™ P2
Piranha™ P36
Piranha™ P40
Piranha™ P50: All Serial #'s
Piranha™ P65

Proudly Made in the USA
