F16 Corner Radius Punch - No Keyway
Have one to sell?
ConditionNew
1 available
New
All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Corner Radius Dies.

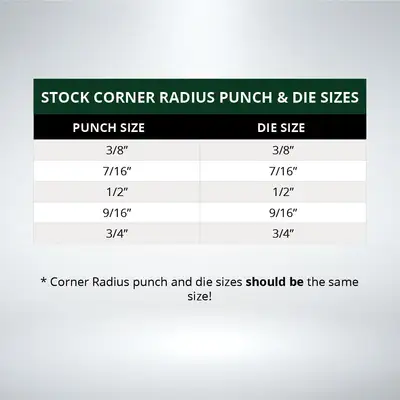

*Punch and Die should be the same size.
Additional Information

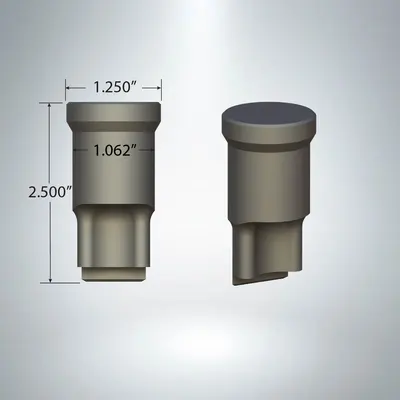

Dimensions: Head Diameter: 1.250" Body Diameter: 1.062" Overall Length: 2.500"
Punch & Die Clearance: Corner Radius Tooling has a standard .024" clearance.
Note: Material thickness should NOT exceed 1/4".
Cross Reference:
F16 Punch
AP-119, CST-219, GFM-37, PIR-DH
Proudly Made in the USA
