F20 Corner Radius Punch - No Keyway
Have one to sell?
ConditionNew
1 available
New
Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55, F59, and F62 Corner Radius Dies.

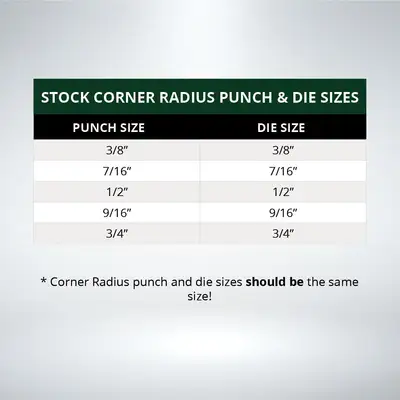

*Punch and Die should be the same size.
Additional Information

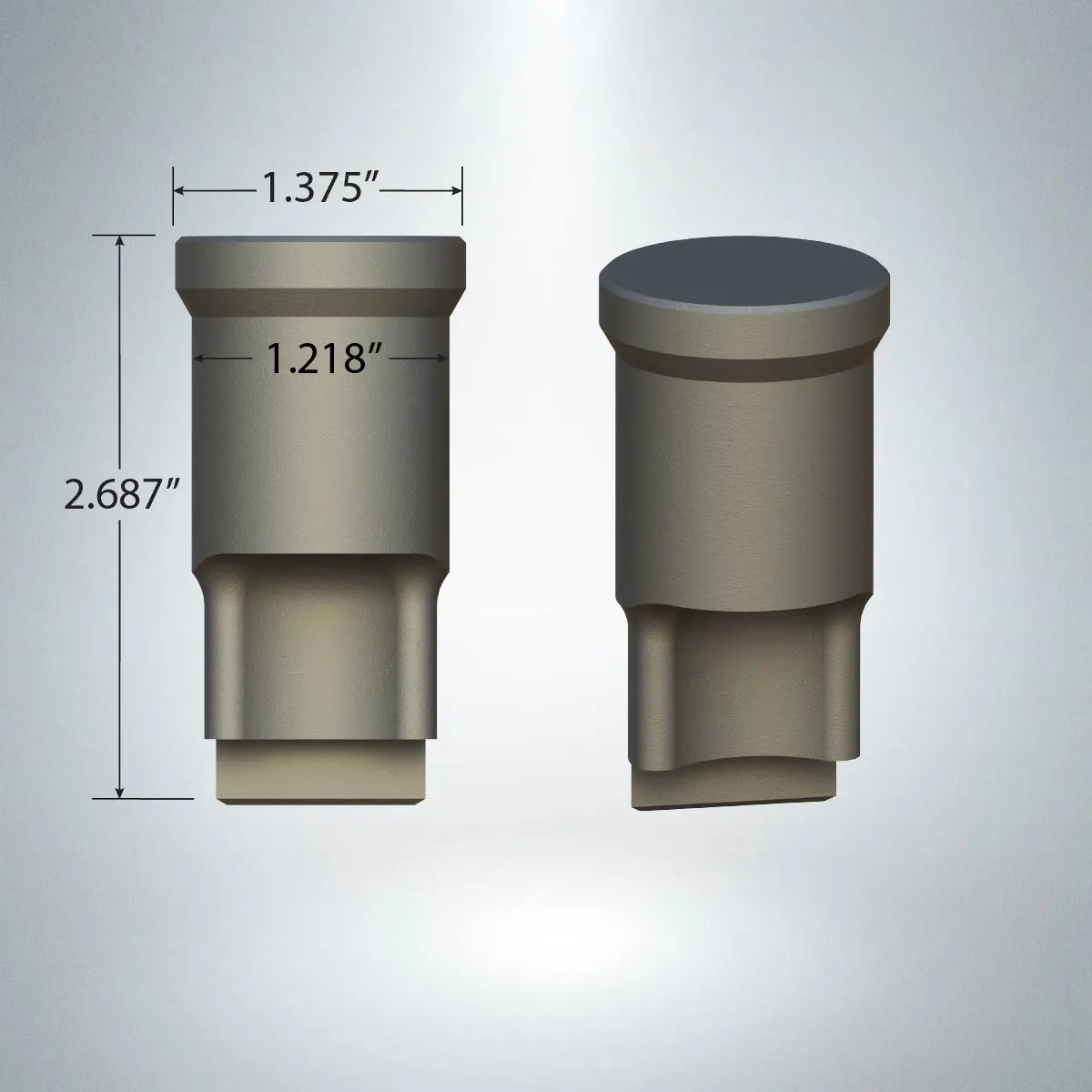

Dimensions: Head Diameter: 1.375" Body Diameter: 1.218" Overall Length: 2.687"
Punch & Die Clearance: Corner Radius Tooling has a standard .024" clearance.
Note: Material thickness should NOT exceed 1/4".
Cross Reference:
F20 Punch
AP-121, CST-221, GFM-40, PIR-EA, SCOT-40
Proudly Made in the USA
