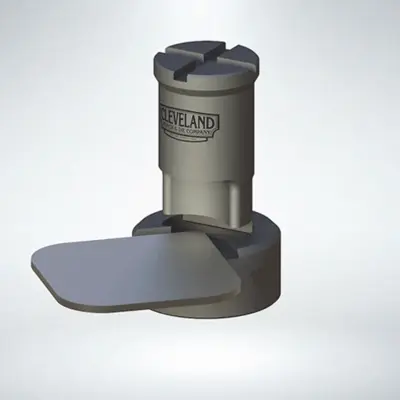

F20 Corner Radius Punch with 6mm Cross Keyway

Punches are supplied with a 6mm wide x 4mm deep cross keyway. Use 6mm x 6mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F59 Corner Radius Dies.

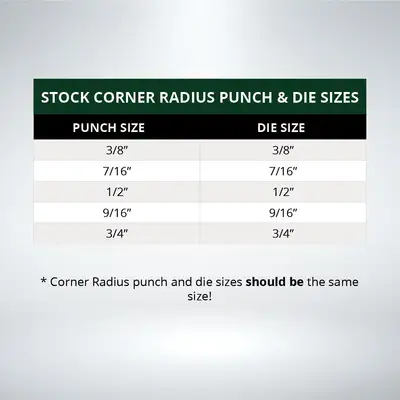

*Punch and Die should be the same size.

Additional Information

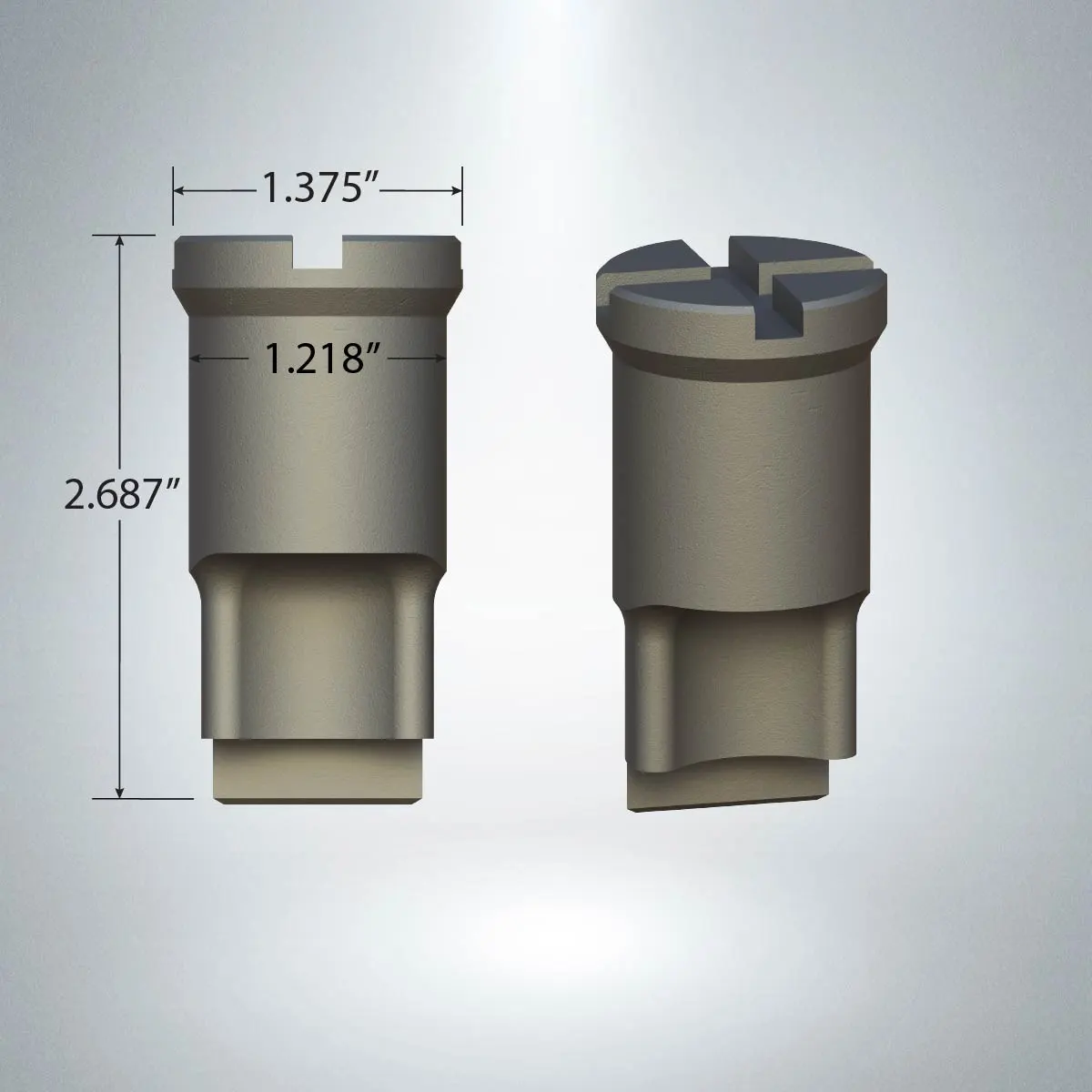

Dimensions: Head Diameter: 1.375" Body Diameter: 1.218" Overall Length: 2.687"
Punch & Die Clearance: Corner Radius Tooling has a standard .024" clearance.
Note: Material thickness should NOT exceed 1/4".
Cross Reference:

F20 Punch
AP-121, CST-221, GFM-40, PIR-EA, SCOT-40

Proudly Made in the USA
