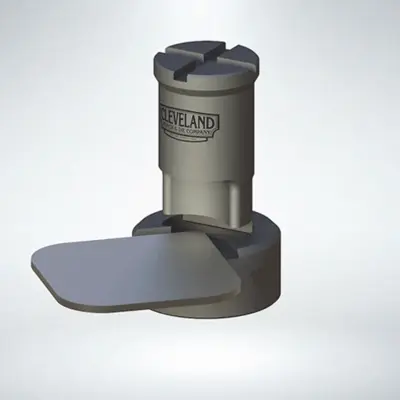

F20 Corner Radius Punch with 1/4" x 1/8" Cross Keyway

Punches are supplied with a 1/4" wide x 1/8" deep cross keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Corner Radius Dies.

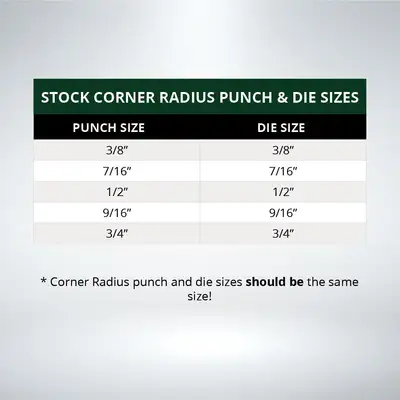

*Punch and Die should be the same size.

Additional Information

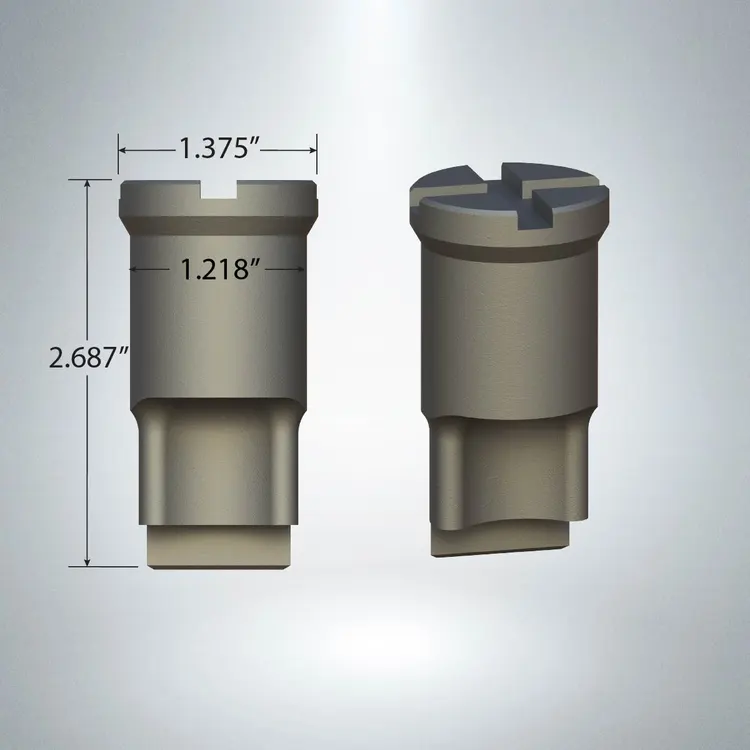

Dimensions: Head Diameter: 1.375" Body Diameter: 1.218" Overall Length: 2.687"
Punch & Die Clearance: Corner Radius Tooling has a standard .024" clearance.
Note: Material thickness should NOT exceed 1/4".
Cross Reference:

F20 Punch
AP-121, CST-221, GFM-40, PIR-EA, SCOT-40

Proudly Made in the USA
