F20 GXL97 Round Punch

All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F59 Round Dies.
*F20 GXL97 extended length punches are designed to punch angle iron leg up on Geka™ ironworkers. A special stripper is required to use these extended length punches.

Additional Information

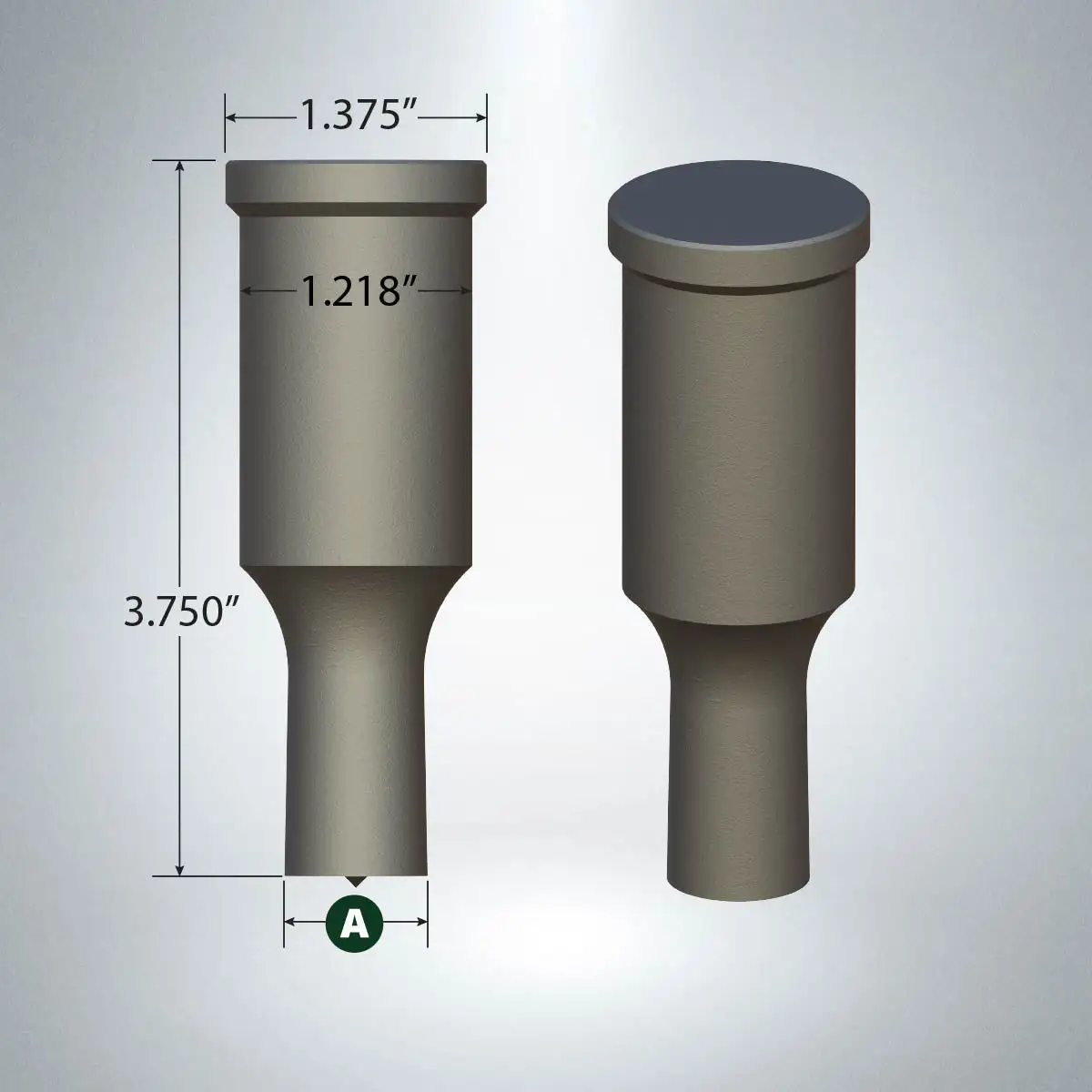

Dimensions: Head Diameter: 1.375" Body Diameter: 1.218" Overall Length: 3.750"

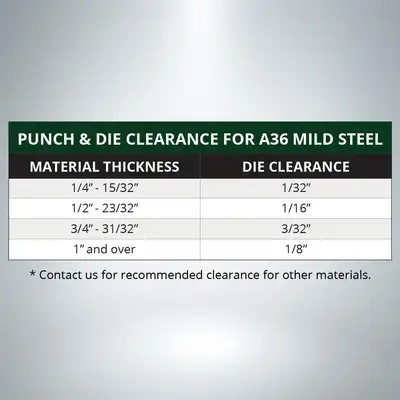

Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.

Proudly Made in the USA
