F26 Square Punch with 1/4" x 1/8" Single Keyway

Punches are supplied with a 1/4" wide x 1/8" deep single keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62 Square Dies.
*For carriage bolt and square tube applications we recommend using a square punch 1/32" larger than the size of carriage bolt or square tube.

Additional Information

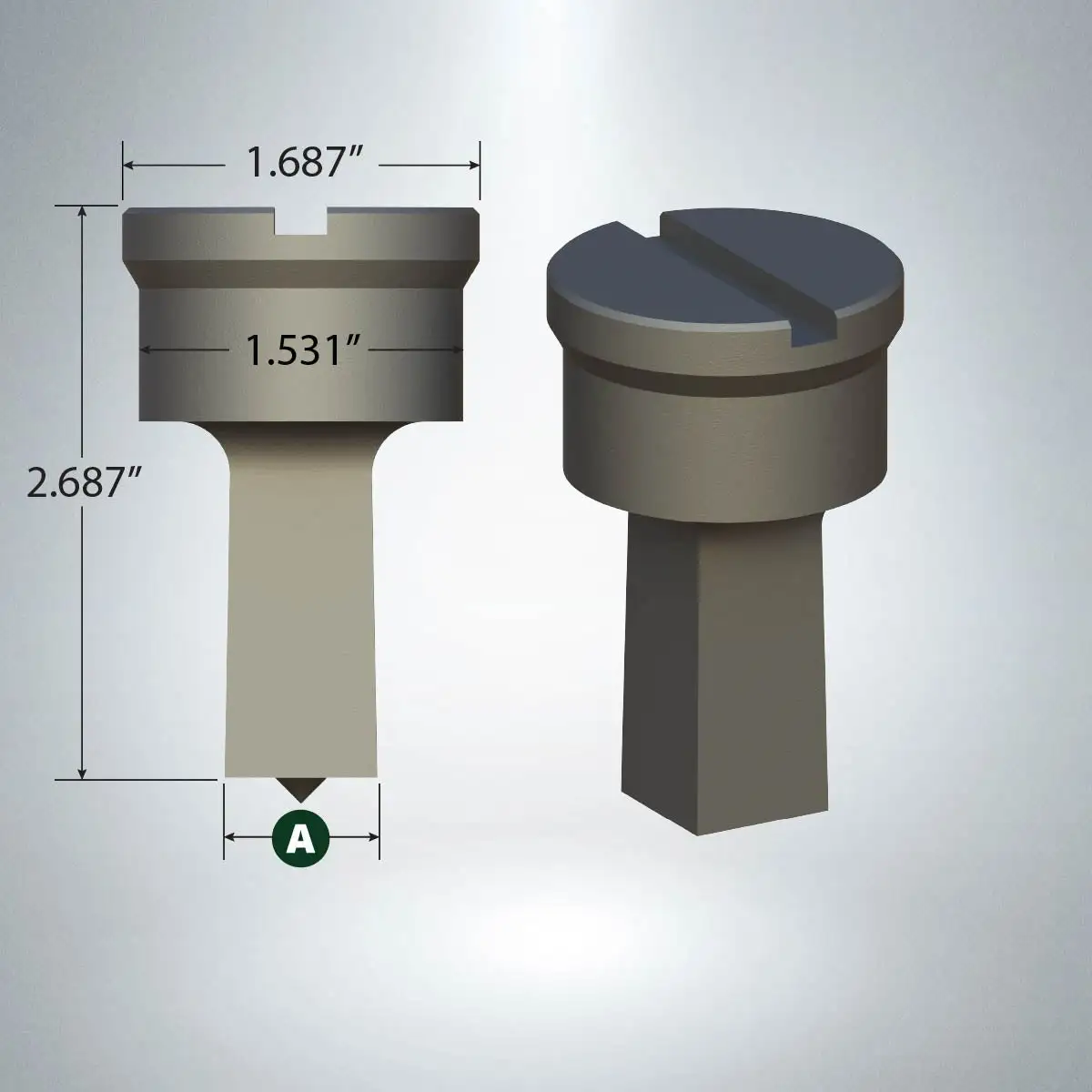

Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.687"

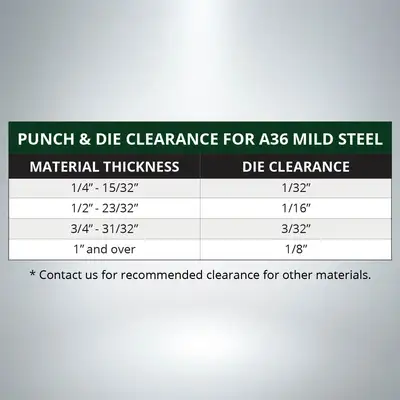

Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F26 Punch
AP-128, CST-228, GFM-45, PIR-EF

Proudly Made in the USA
