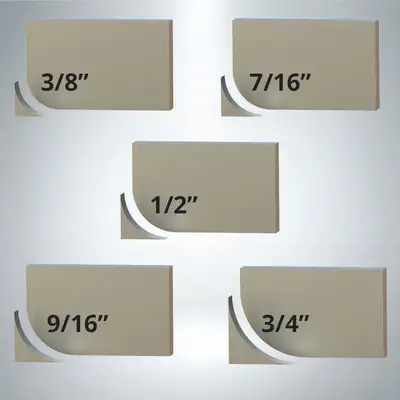

F26 Corner Radius Punch - No Keyway
Have one to sell?
ConditionNew
1 available
New

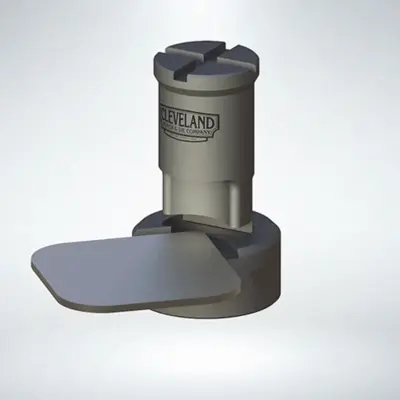

Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F62 Corner Radius Dies.

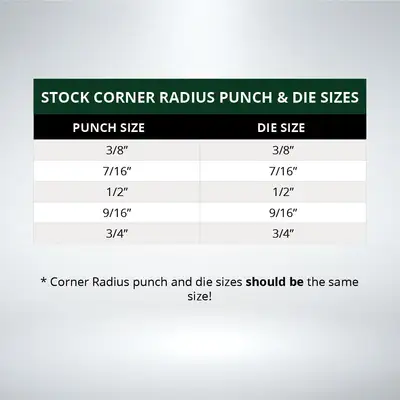

*Punch and Die should be the same size.
Additional Information

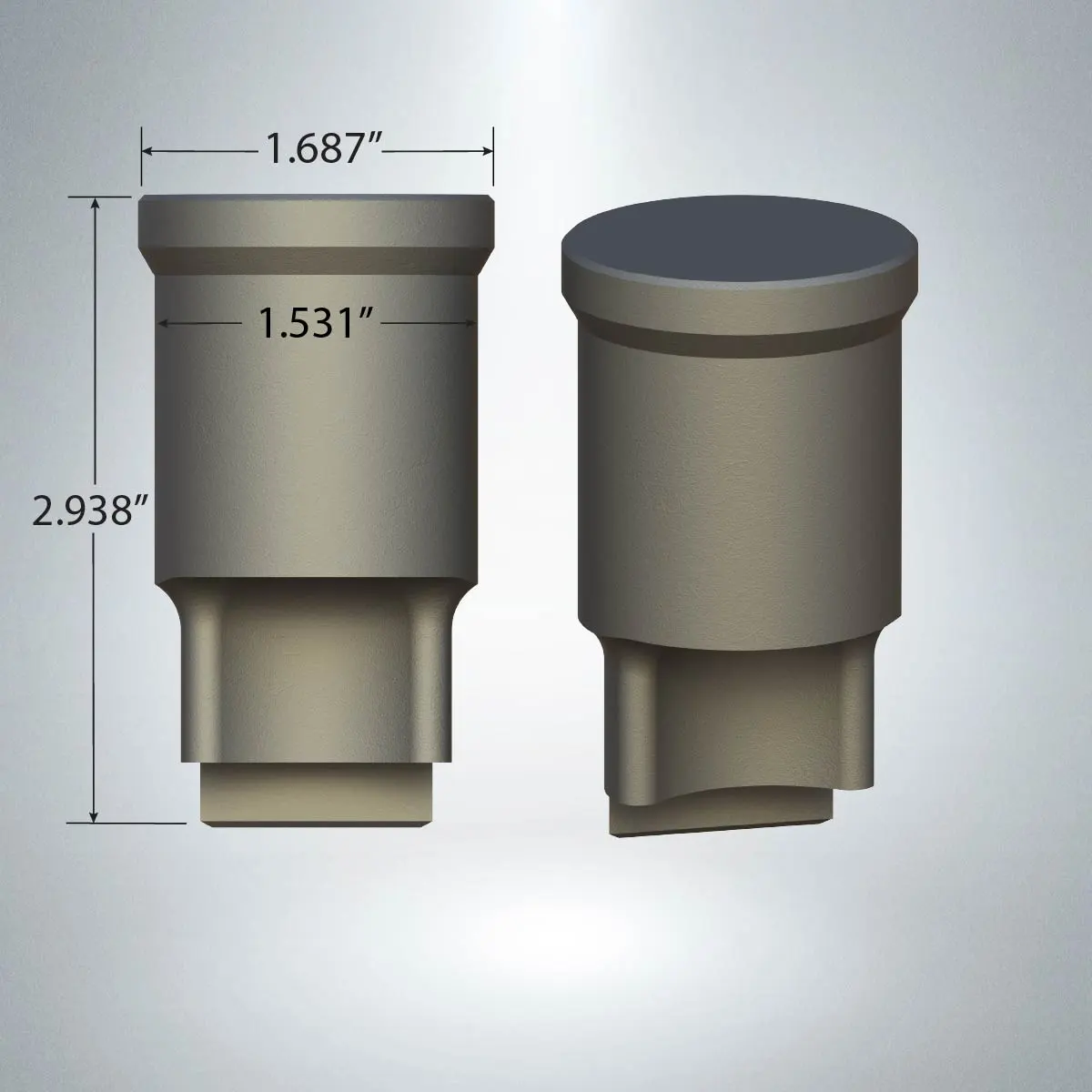

Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.938"
Punch & Die Clearance: Corner Radius Tooling has a standard .024" clearance.
Note: Material thickness should NOT exceed 1/4".
Cross Reference:
F26 Punch
AP-128, CST-228, GFM-45, PIR-EF
Proudly Made in the USA
