F26 Picket Punch - No Keyway
Have one to sell?
ConditionNew
1 available
New

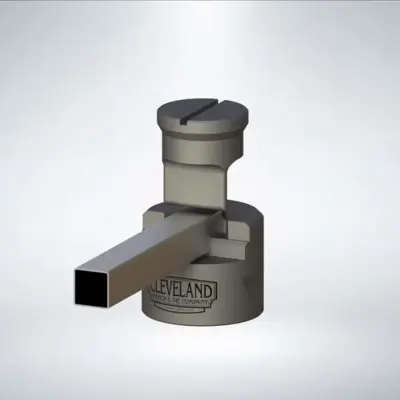

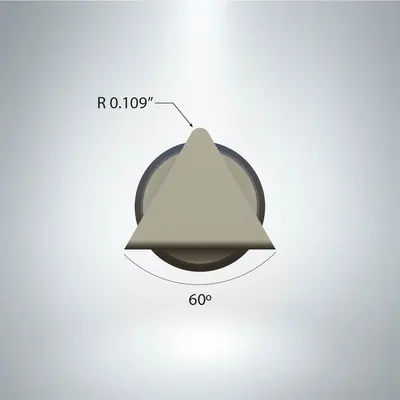

Picket Tooling generates a 60ยบ picket on square tubing. Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F62 Picket Dies.

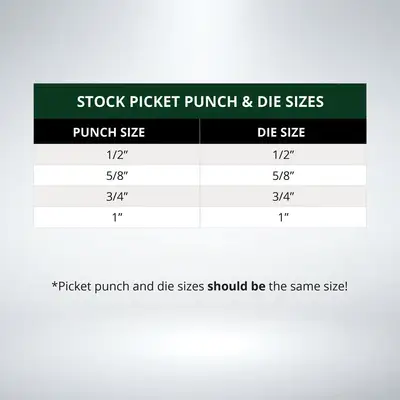

*Punch and Die should be the same size.
Additional Information

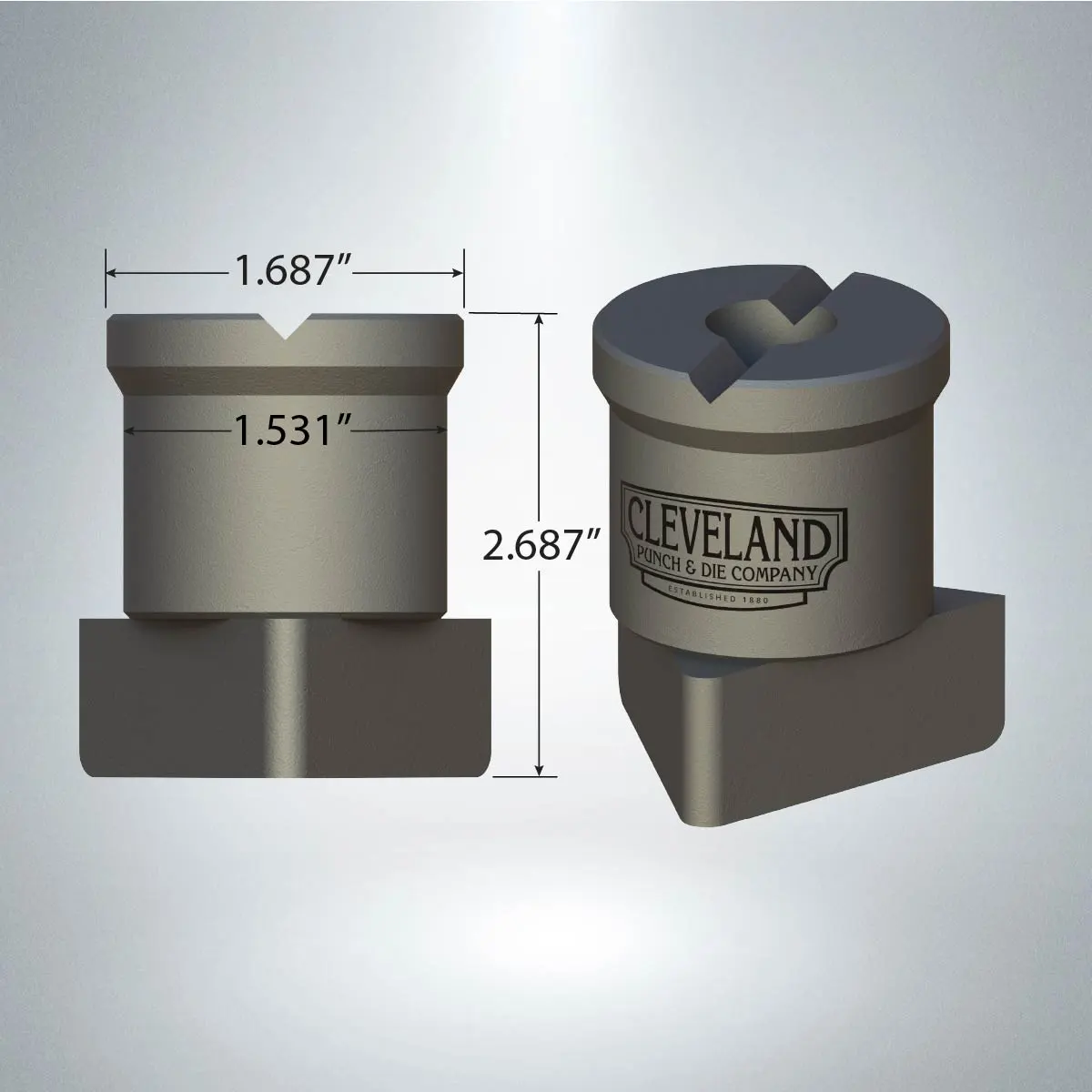

Dimensions:Head Diameter: 1.687"Body Diameter: 1.531"Overall Length: 2.687"
Punch & Die Clearance:Picket Tooling has a standard .031" clearance.
Note:Material thickness should NOT exceed 16 gauge (.0598").
Proudly Made in the USA
