F26 Corner Radius Punch with 1/4" x 1/8" Cross Keyway

Punches are supplied with a 1/4" wide x 1/8" deep cross keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62 Corner Radius Dies.

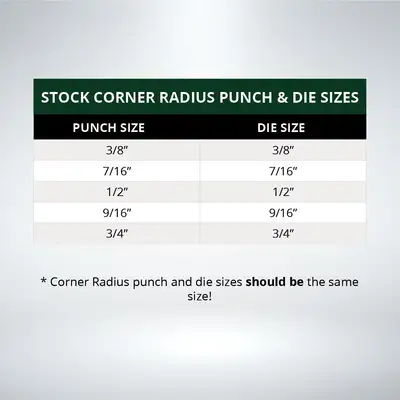

*Punch and Die should be the same size.

Additional Information

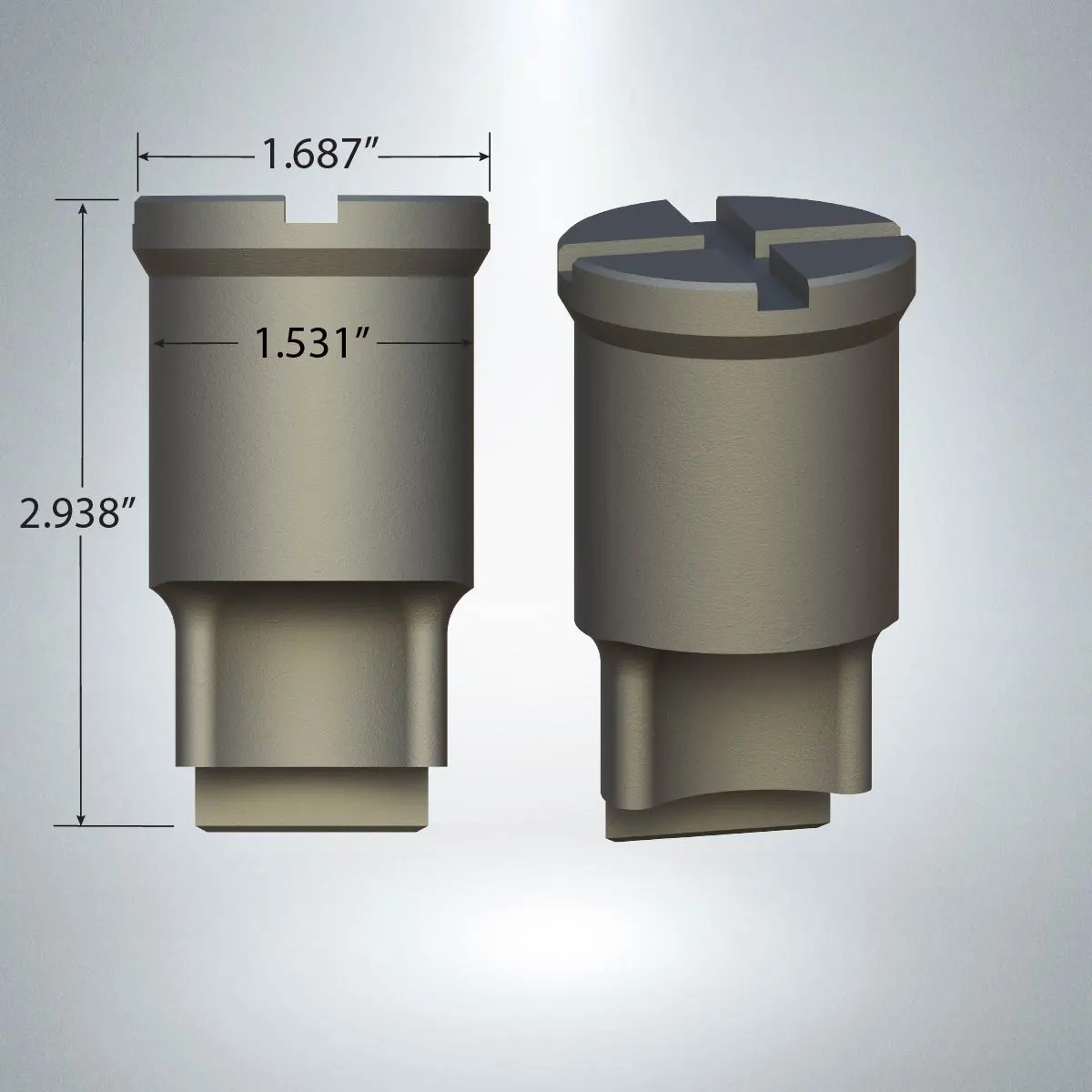

Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.938"
Punch & Die Clearance: Corner Radius Tooling has a standard .024" clearance.
Note: Material thickness should NOT exceed 1/4".
Cross Reference:

F26 Punch
AP-128, CST-228, GFM-45, PIR-EF

Proudly Made in the USA
