F26S Oblong Punch with 6mm Cross Keyway

Punches are supplied with a 6mm wide x 4mm deep cross keyway. Use 6mm x 6mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62S Oblong Dies.

Additional Information

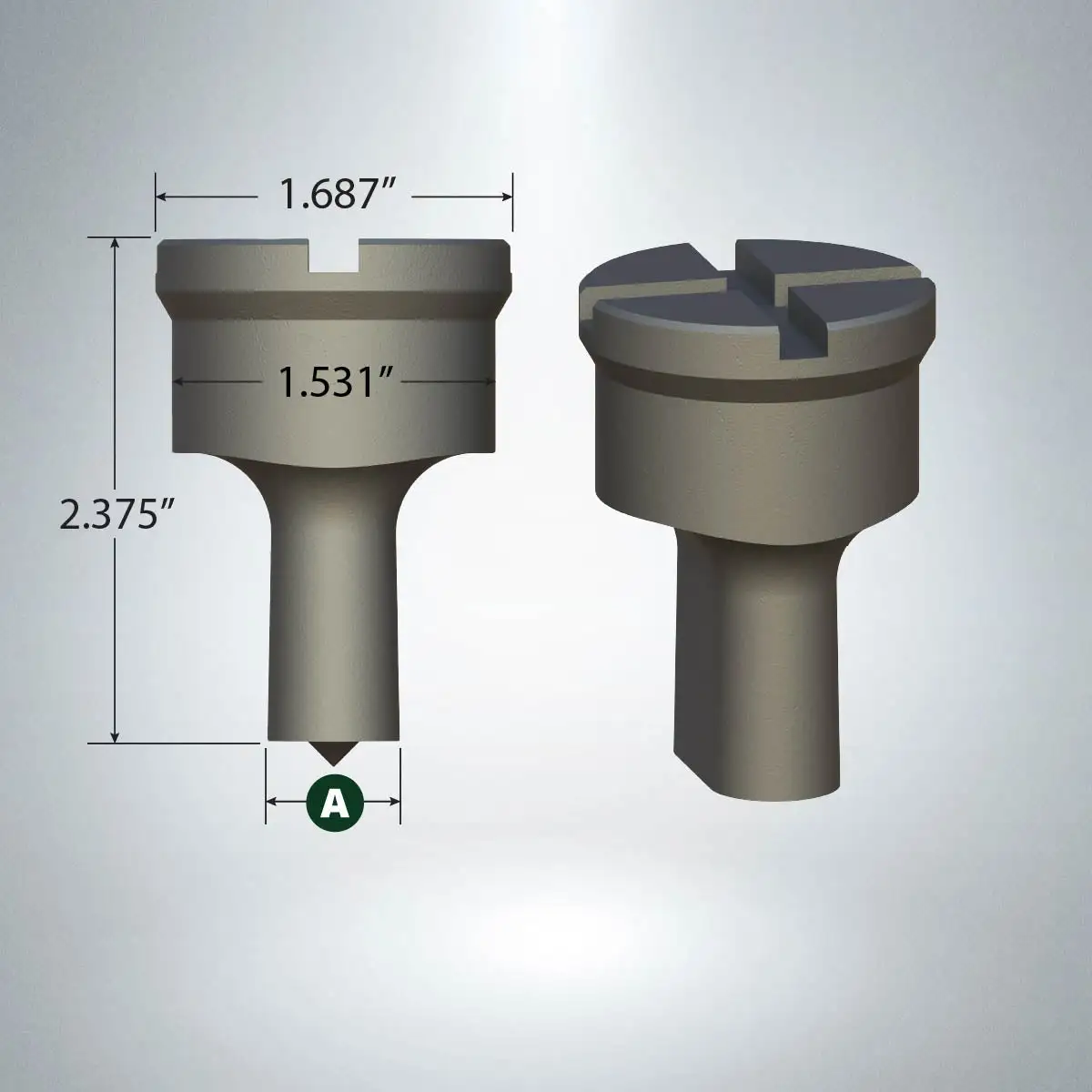

Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.375"
Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed the smallest punch size.
Cross Reference:

F26S Punch
AP-128S, CST-228S

Proudly Made in the USA
