F26 Picket Punch with 1/4" x 1/8" Cross Keyway

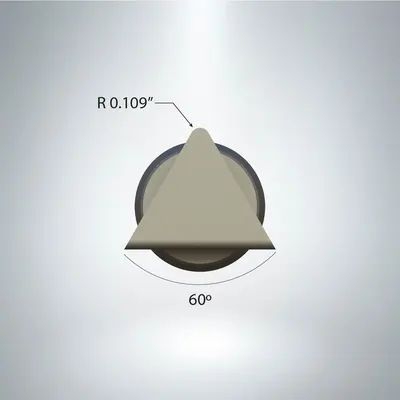

Picket Tooling generates a 60º picket on square tubing. Punches are supplied with a 1/4" wide x 1/8" deep cross keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62 Picket Dies.

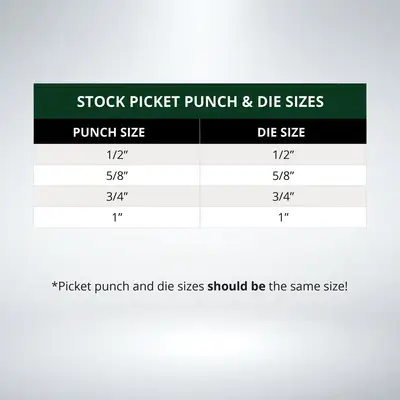

*Punch and Die should be the same size.

Additional Information

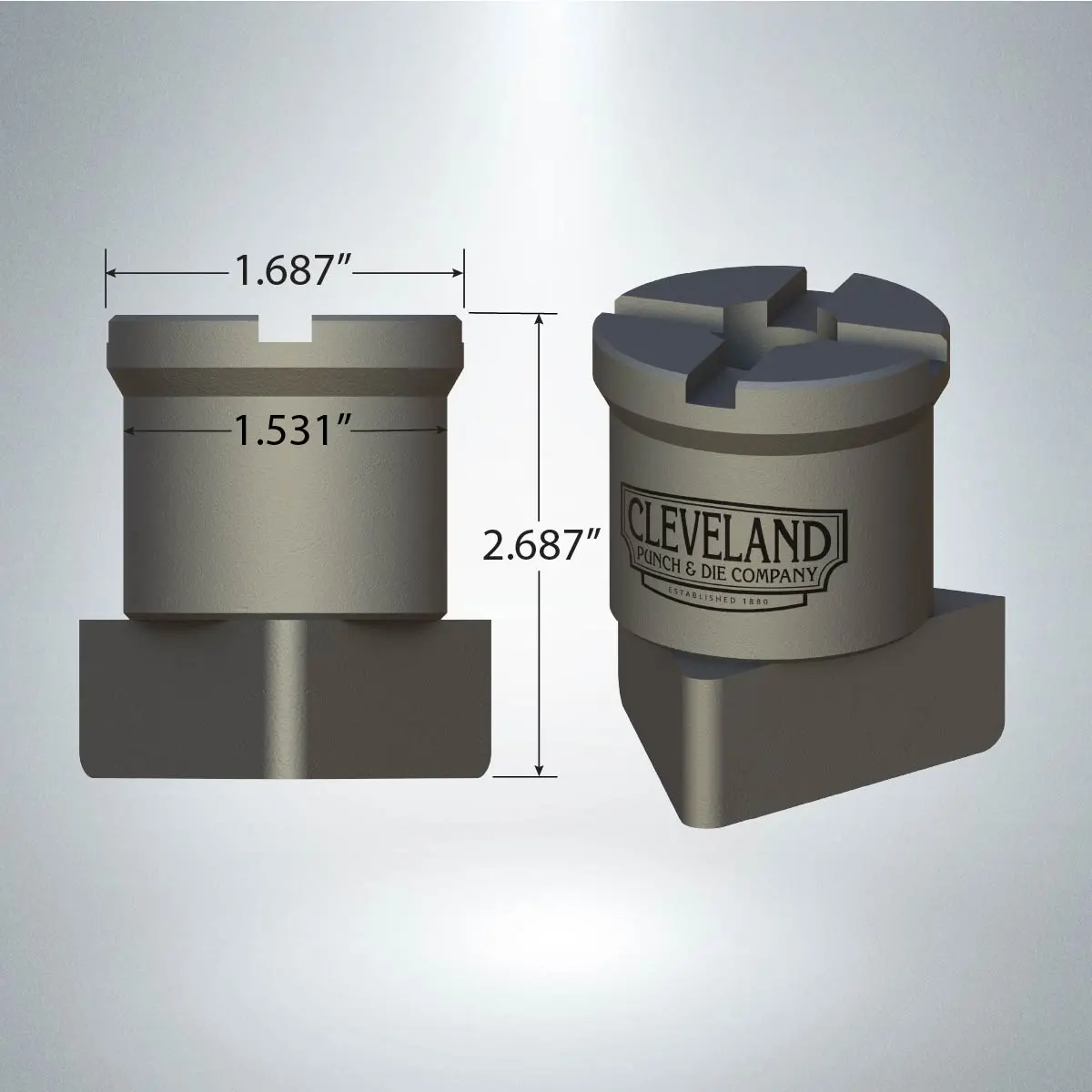

Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.687"
Punch & Die Clearance: Picket Tooling has a standard .031" clearance.
Note: Material thickness should NOT exceed 16 gauge (.0598").

Proudly Made in the USA
