F272 Oblong Punch with 1/4" x 1/8" Cross Keyway

Punches are supplied with a 1/4" wide x 1/8" deep cross keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F740 Oblong Dies.

Additional Information

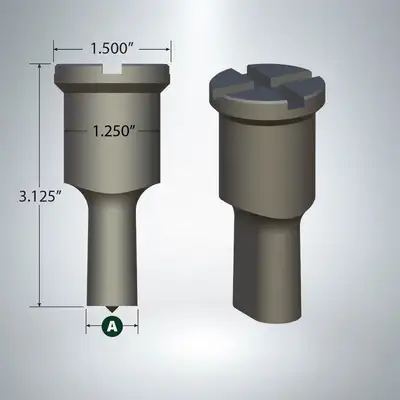

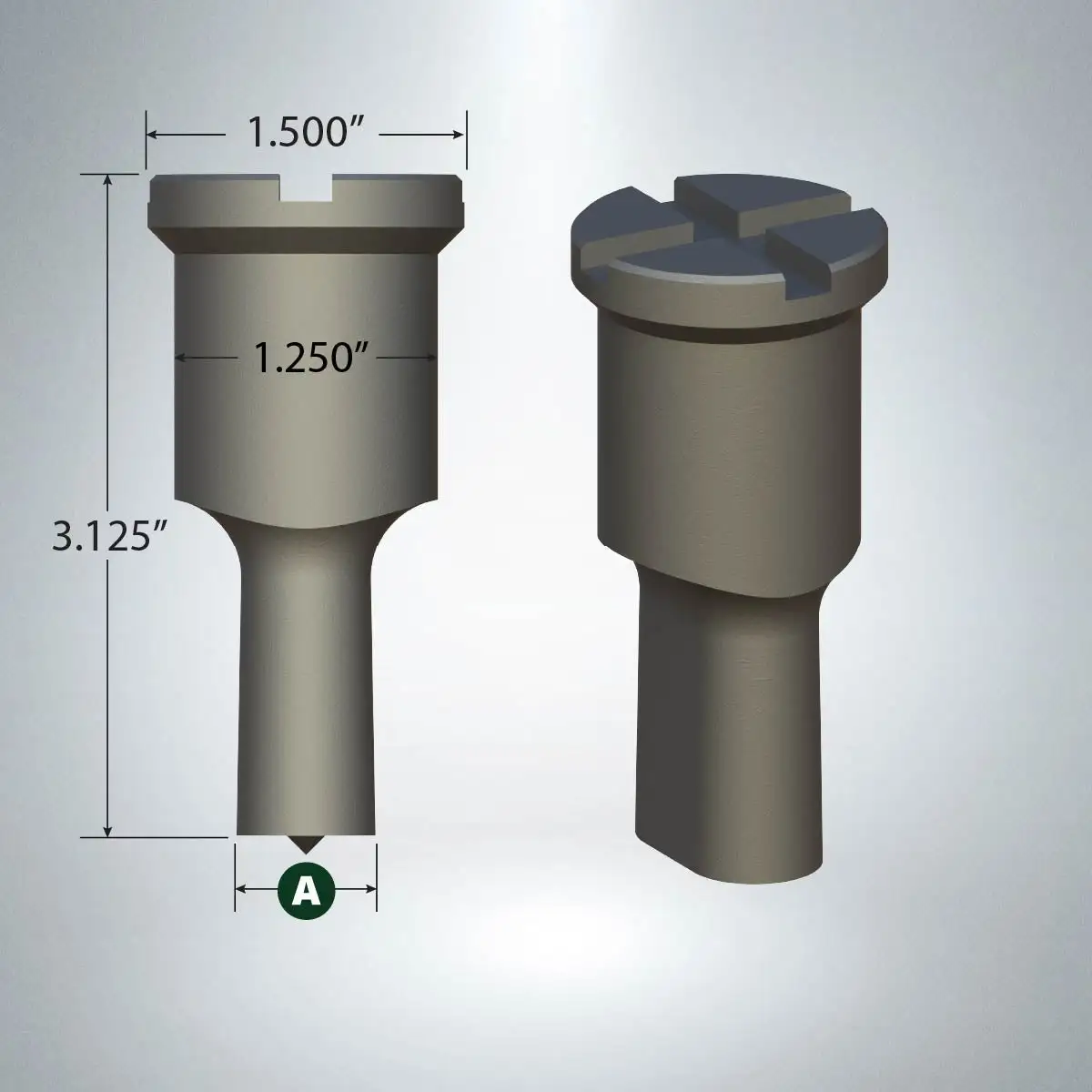

Dimensions: Head Diameter: 1.500" Body Diameter: 1.250" Overall Length: 3.125"
Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed the smallest punch size.
Cross Reference:

F272 Punch
AP-164, CST-64, GFM-124, WAW-7721

Proudly Made in the USA
