F272 Square Punch with 1/4" x 1/8" Single Keyway

Punches are supplied with a 1/4" wide x 1/8" deep single keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F740 Square Dies.
*For carriage bolt and square tube applications we recommend using a square punch 1/32" larger than the size of carriage bolt or square tube.

Additional Information

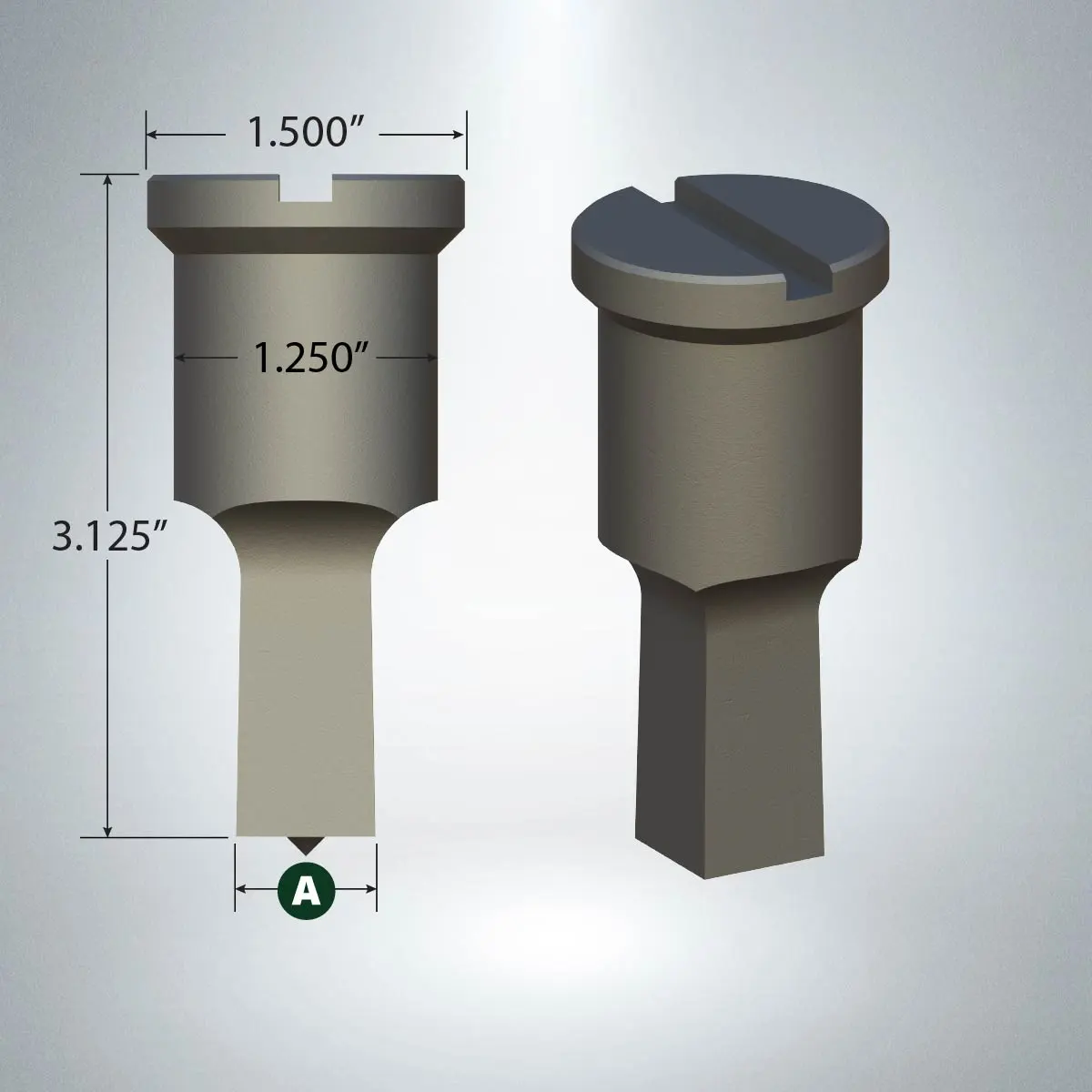

Dimensions: Head Diameter: 1.500" Body Diameter: 1.250" Overall Length: 3.125"

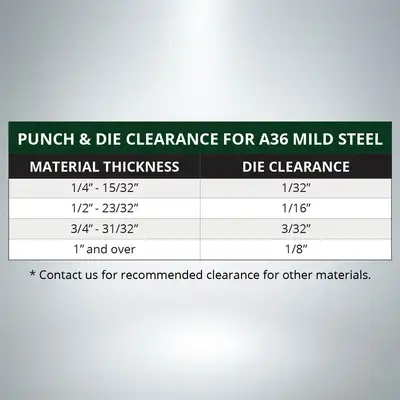

Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F272 Punch
AP-164, CST-64, GFM-124, WAW-7711

Proudly Made in the USA
