SUN30 Oblong Punch

Punches are supplied with a 4mm wide x 2.5mm deep single keyway. Use 4mm x 4mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with a SUN45 Oblong Die.

Additional Information

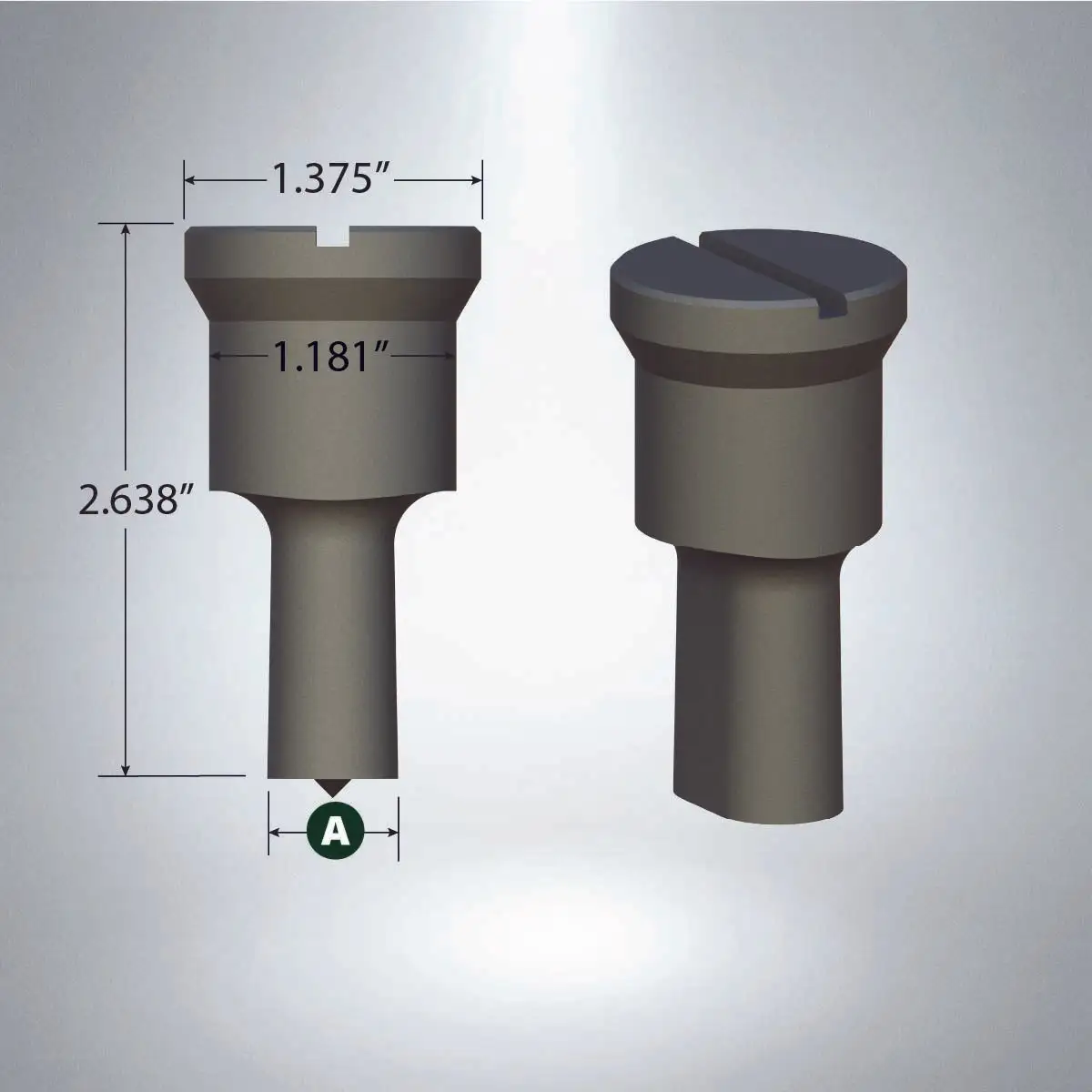

Dimensions:Head Diameter: 1.375"Body Diameter: 1.181"Overall Length: 2.638"

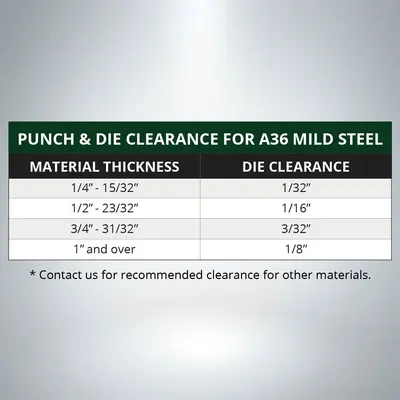

Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:Material thickness should not exceed punch size.
Cross Reference:

SUN30 Punch
AP-SP1, CST-SUN30P, SUN-RP1

Proudly Made in the USA
