The AP-313 Round Die is used with a AP-119 Round Punch to punch holes in mild steel, stainless steel, and other metals. Compatible with popular ironworker brands including Piranha™, Edwards™, and more. Paired with AP-119 Round Punch.
Dies are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. Ideal for fabrication, maintenance, and manufacturing shops.
Punch & Die Clearance:
Use the chart in the image carousel above to determine recommended die clearance. The punch and die should NOT be the same size.
Specifications:

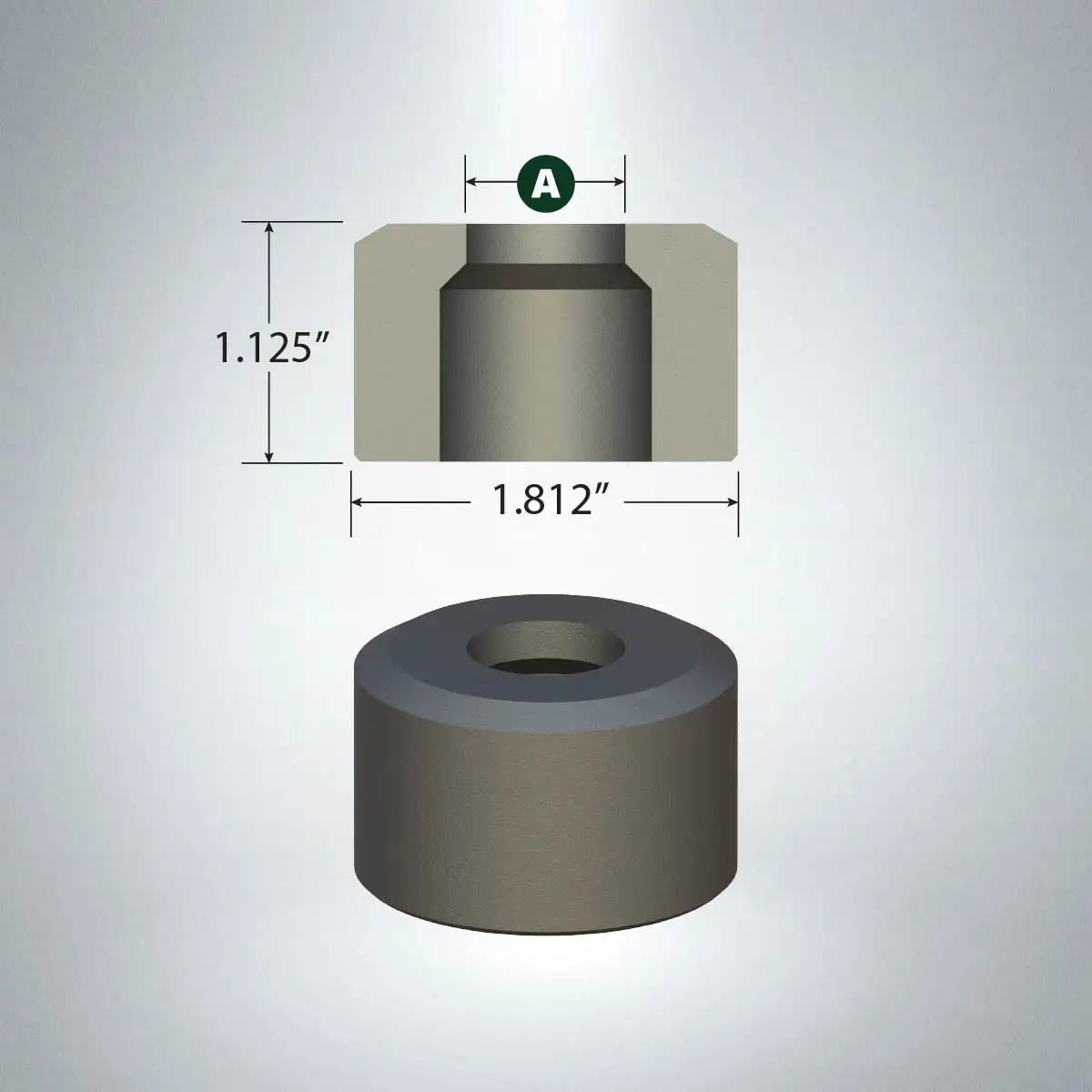

AP-313 Die: 1.812" outside diameter, 1.125" height
AP-313 Die size cannot exceed 1-3/8". Contact us for any custom sizes (1/64" increments, millimeters, etc.)
Replacement For:
Cleveland Punch & Die (F55 die)
Cleveland Steel Tool (CST-413 die)
Piranha (PIR-JB die)
Die is Compatible for the Following Machines:
Cayman™
Edwards™
Hawthorne™
Megaworker™
Nelson™
Omes™
Peddinghaus™
Piranha™
Pittsburgh™
Polmaco™
Proudly Made in the USA
