1-3/8" PIR-JB Round Die for Piranha™ Ironworkers

The PIR-JB Round Die is manufactured for Piranha™ ironworker machines, used with a PIR-DH Round Punch to punch holes in mild steel, stainless steel, and other metals. The PIR-JB Round Die is standard for 65 ton and smaller Piranha™ models. Paired with PIR-DH Round Punch.
Dies are manufactured from a high-quality tool steel, built to last while punching mild steel, stainless steel, aluminum and more. Tooling is used when punching flat bar, angle, channel, I-beam, or sheet metal. Ideal for fabrication, maintenance, and manufacturing shops.
Punch & Die Clearance:
Use the chart in the image carousel above to determine recommended die clearance. The punch and die should NOT be the same size.
Specifications:

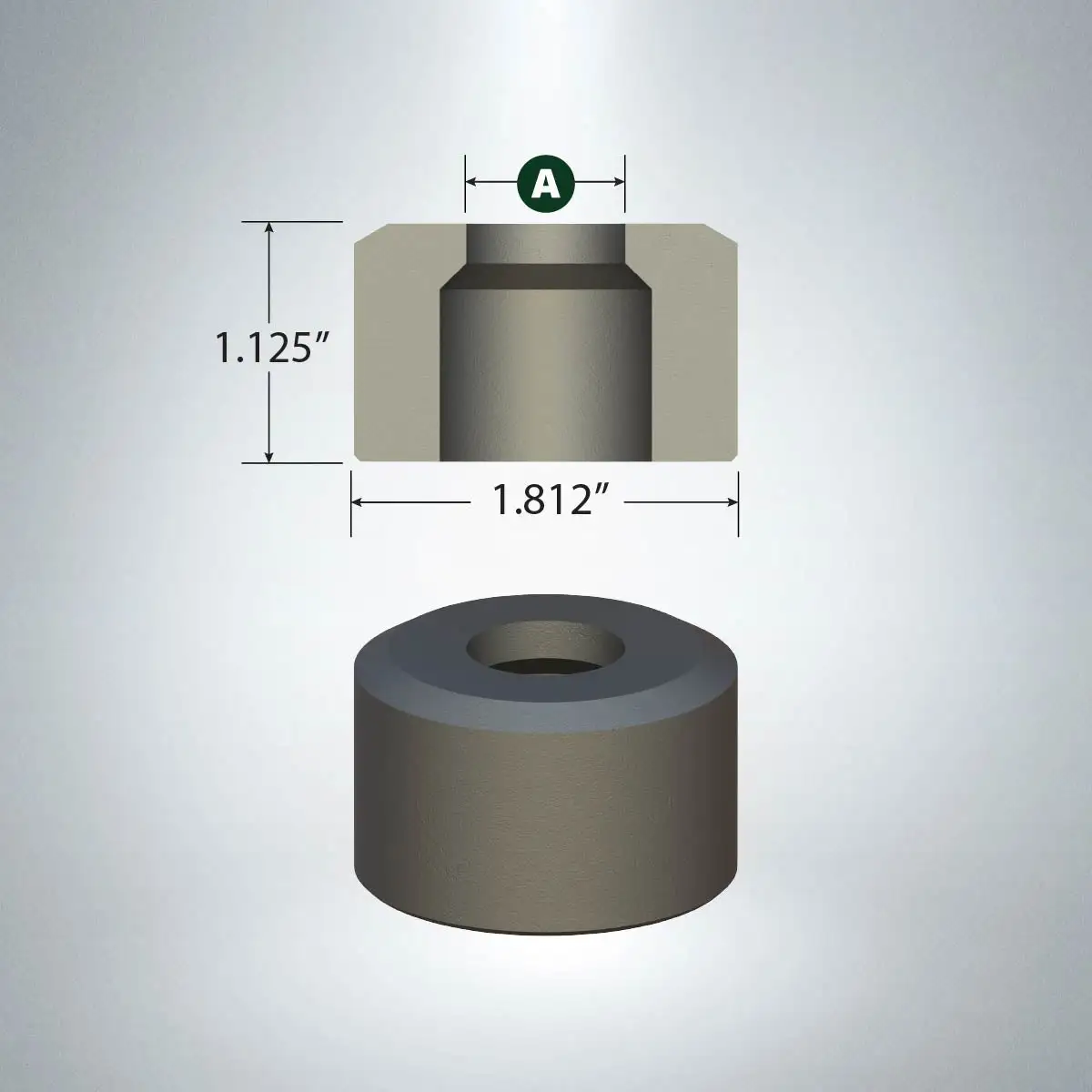

PIR-JB Die: 1.812" outside diameter, 1.125" height
PIR-JB Die size cannot exceed 1-3/8". Contact us for any custom sizes (1/64" increments, millimeters, etc.)

Replacement For:

American Punch (AP-313 die)
Cleveland Punch & Die (F55 die)
Cleveland Steel Tool (CST-413 die)

Die is Compatible for the Following Machines:

Piranha™ P2
Piranha™ P36
Piranha™ P40
Piranha™ P50: All Serial #'s
Piranha™ P65

Proudly Made in the USA
