F62 Oblong Offset Die
Have one to sell?
ConditionNew
1 available
New
Dies are supplied with one locator notch. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F20 andF26 Oblong Punches.
*Do not use an Offset Die if you CANNOT adjust your die holder.
Additional Information

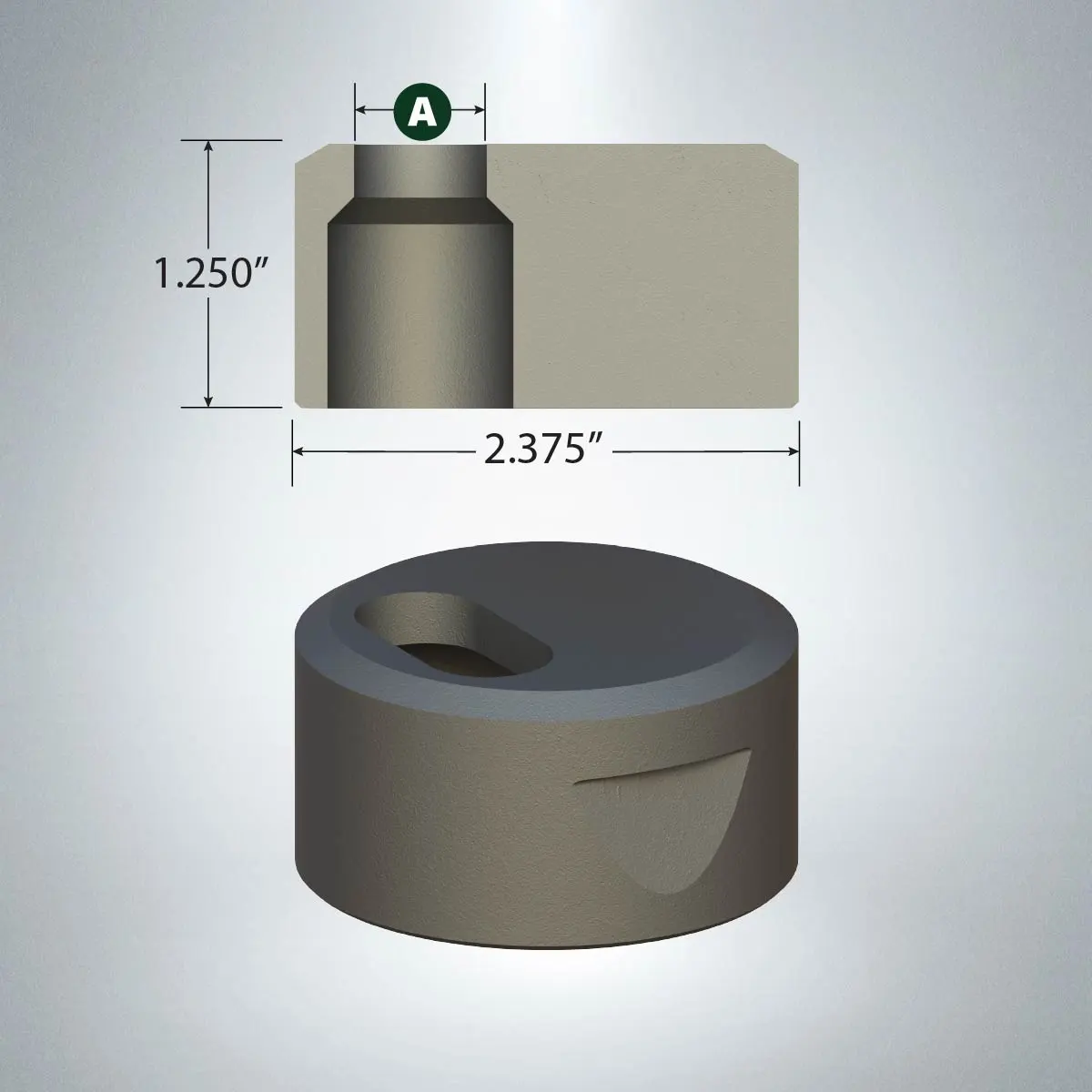

Dimensions: Outside Diameter: 2.375" Height: 1.250"

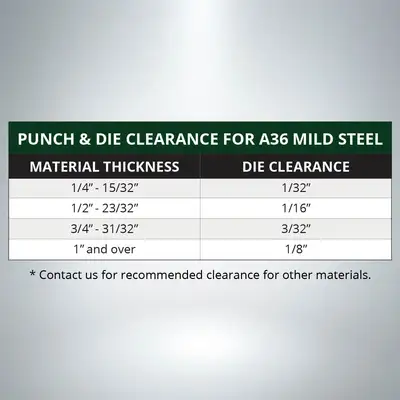

Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Cross Reference:
F62 Die
AP-319, CST-419, GFM-85, PIR-JC
Proudly Made in the USA
