F9/F43 Punch & Die Set - 8 Pack

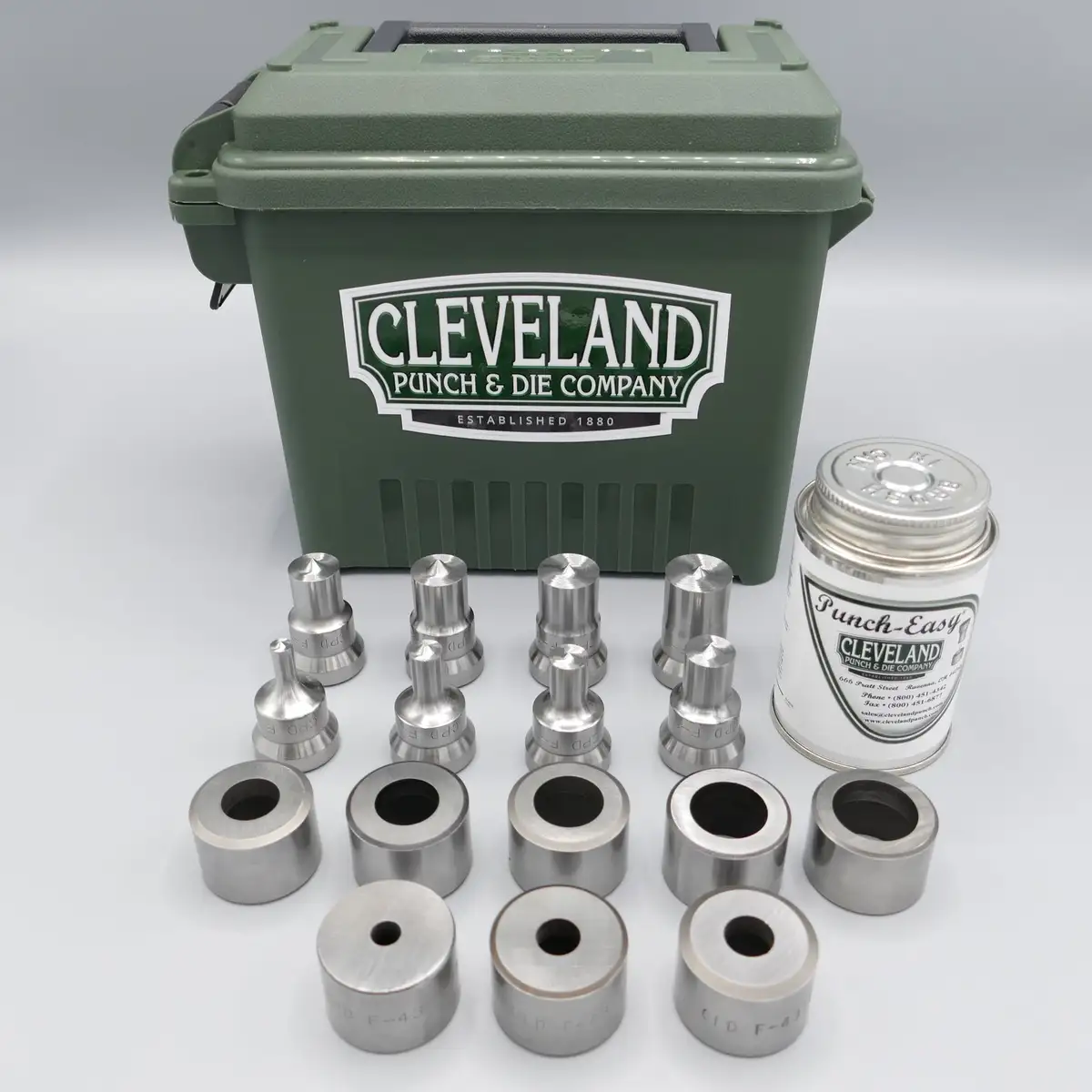

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 8 F9 Round Punches, 8 F43 Round Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

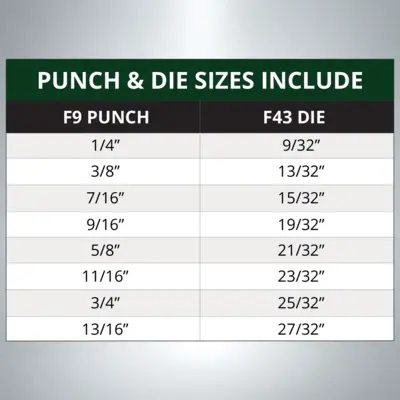

Punch & Die Sizes Include:

F9 Punch
1/4", 3/8", 7/16", 9/16", 5/8", 11/16", 3/4", 13/16"

F43 Die
9/32", 13/32", 15/32", 19/32", 21/32", 23/32", 25/32", 27/32"

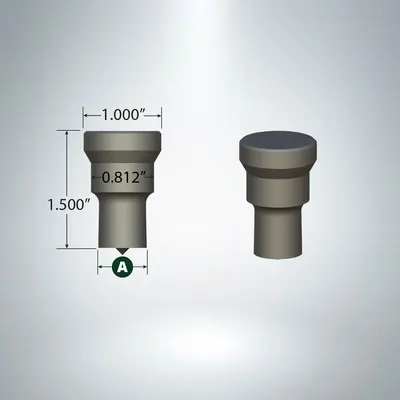

F9 Punch Dimensions: Head Diameter: 1.000" Body Diameter: 0.812" Overall Length: 1.500"

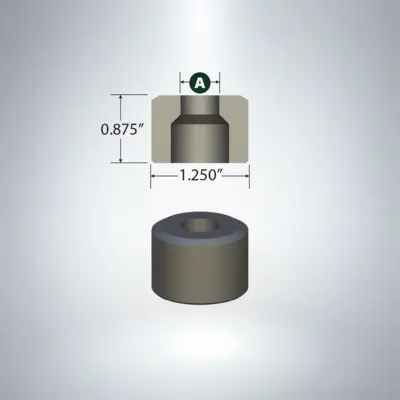

F43 Die Dimensions: Outside Diameter: 1.250" Height: 0.875"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F9 Punch
AP-112, CST-212, GFM-31

F43 Die
AP-305, CST-405, GFM-75, PIR-UT

Proudly Made in the USA
