F16/F55 Oblong Punch & Die Set - 6 Pack

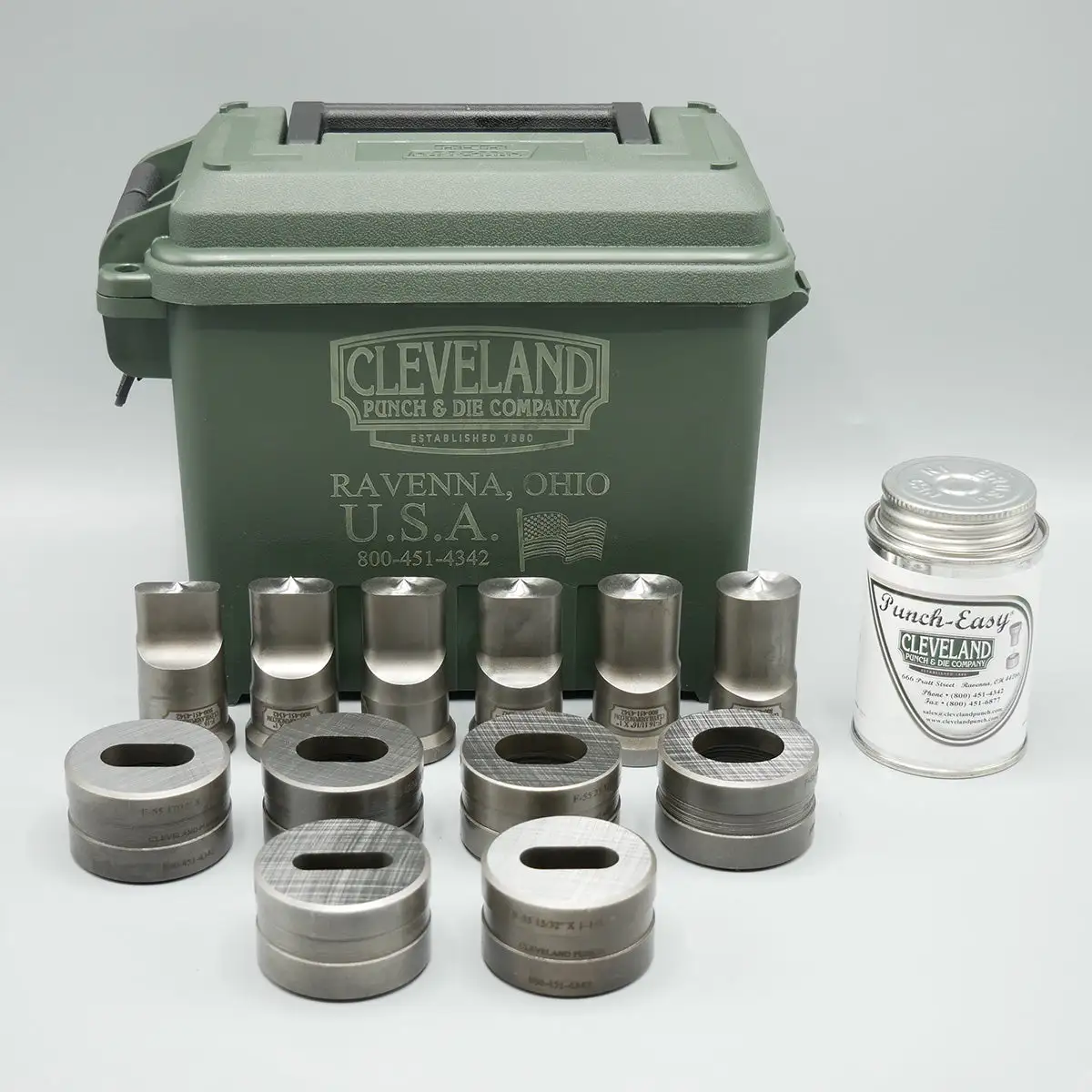

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F16 Oblong Punches, 6 F55 Oblong Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

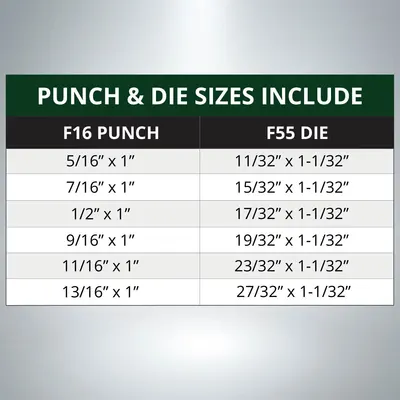

Punch & Die Sizes Include:

F16 Punch
5/16" x 1", 7/16" x 1", 1/2" x 1", 9/16" x 1", 11/16" x 1", 13/16" x 1"

F55 Die
11/32" x 1-1/32", 15/32" x 1-1/32", 17/32" x 1-1/32", 19/32" x 1-1/32", 23/32" x 1-1/32", 27/32" x 1-1/32"

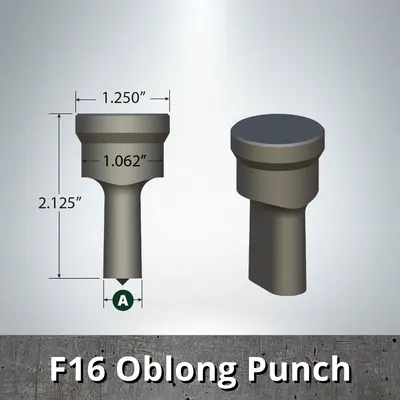

F16 Punch Dimensions: Head Diameter: 1.250" Body Diameter: 1.062" Overall Length: 2.125"

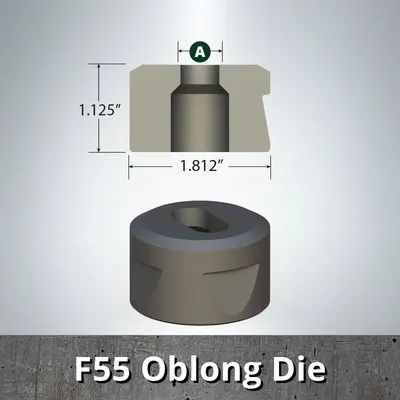

F55 Die Dimensions: Outside Diameter: 1.812" Height: 1.125"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F16 Punch
AP-119, CST-219, GFM-37, PIR-DH

F55 Die
AP-313, CST-413, GFM-81, PIR-JB

Proudly Made in the USA
