F16/F55 Punch & Die Set - 6 Pack

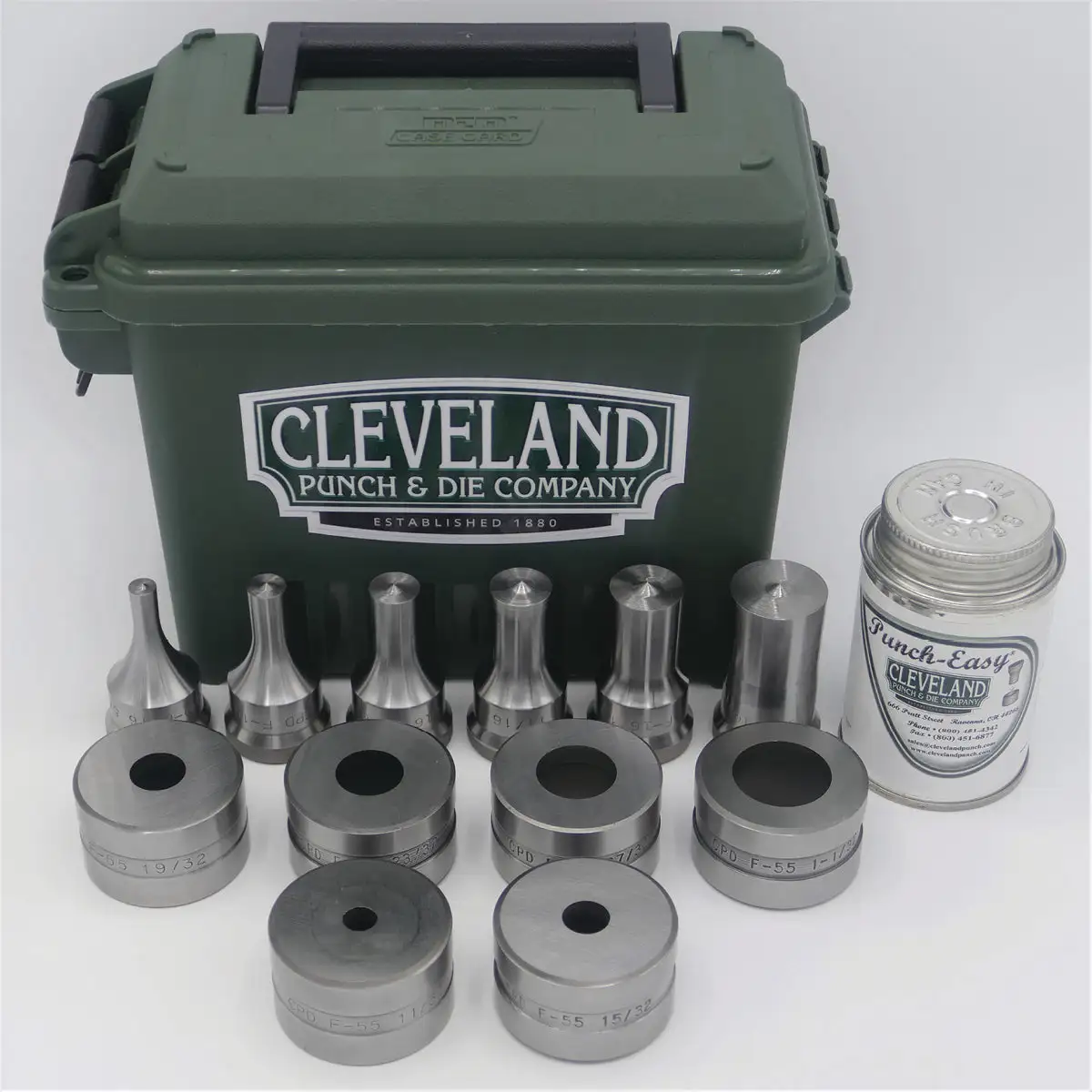

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F16 Round Punches, 6 F55 Round Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

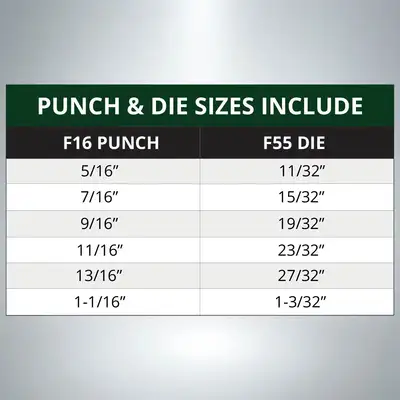

Punch & Die Sizes Include:

F16 Punch
5/16", 7/16", 9/16", 11/16", 13/16", 1-1/16"

F55 Die
11/32", 15/32", 19/32", 23/32", 27/32", 1-3/32"

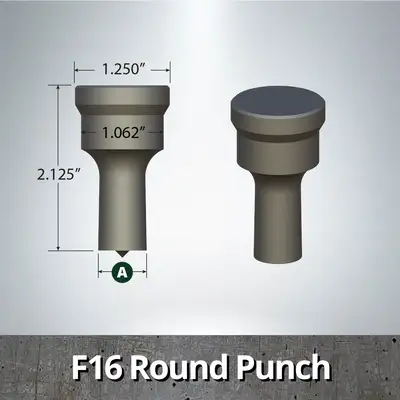

F16 Punch Dimensions: Head Diameter: 1.250" Body Diameter: 1.062" Overall Length: 2.125"
F55 Die Dimensions: Outside Diameter: 1.812" Height: 1.125"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F16 Punch
AP-119, CST-219, GFM-37, PIR-DH

F55 Die
AP-313, CST-413, GFM-81, PIR-JB

Proudly Made in the USA
