F20/F59 Oblong Punch & Die Set - 6 Pack

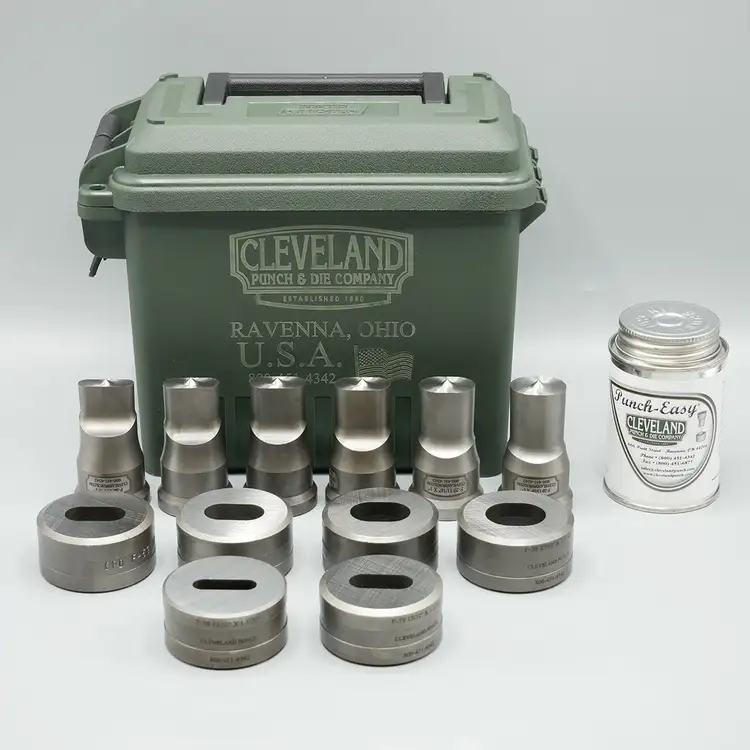

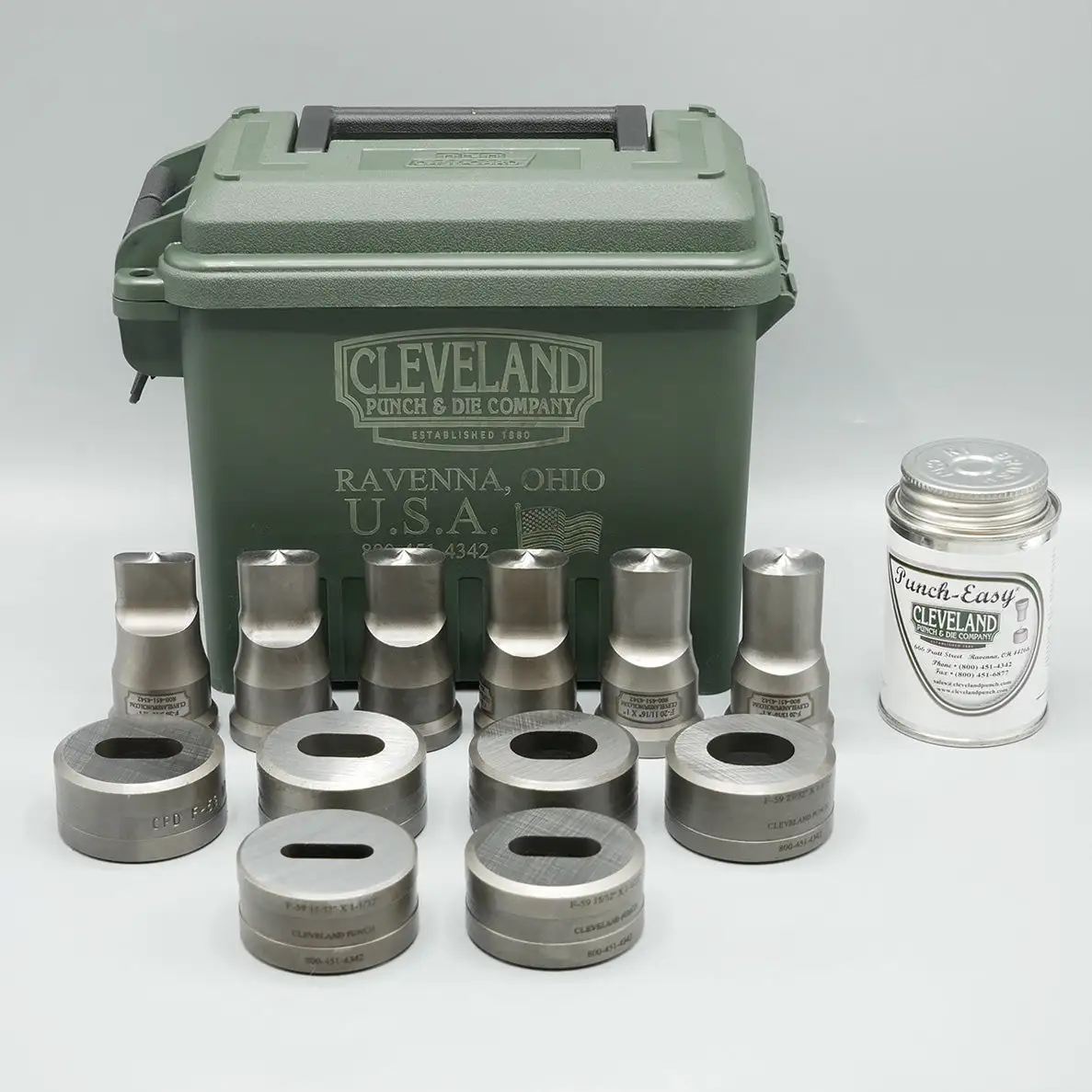

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F20 Oblong Punches, 6 F59 Oblong Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

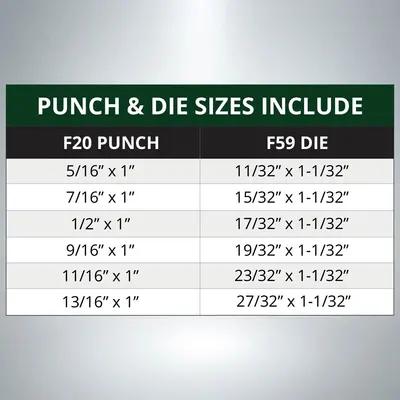

Punch & Die Sizes Include:

F20 Punch
5/16" x 1", 7/16" x 1", 1/2" x 1", 9/16" x 1", 11/16" x 1", 13/16" x 1"

F59 Die
11/32" x 1-1/32", 15/32" x 1-1/32", 17/32" x 1-1/32", 19/32" x 1-1/32", 23/32" x 1-1/32", 27/32" x 1-1/32"

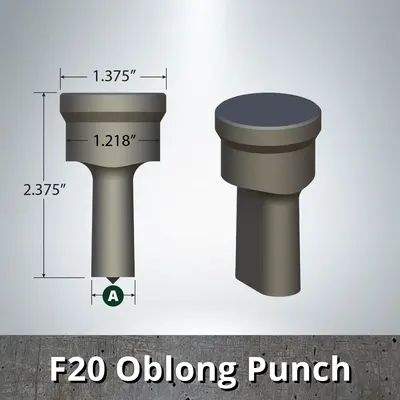

F20 Punch Dimensions: Head Diameter: 1.375" Body Diameter: 1.218" Overall Length: 2.375"

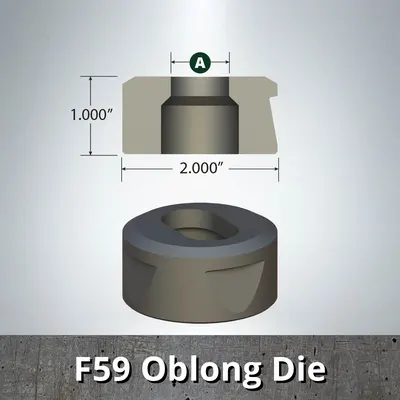

F59 Die Dimensions: Outside Diameter: 2.000" Height: 1.000"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F20 Punch
AP-121, CST-221, GFM-40, PIR-EA, SCOT-40

F59 Die
AP-317, CST-417, GFM-82, PIR-JC, SCOT-82

Proudly Made in the USA
