F26/F62 Punch & Die Set - 6 Pack

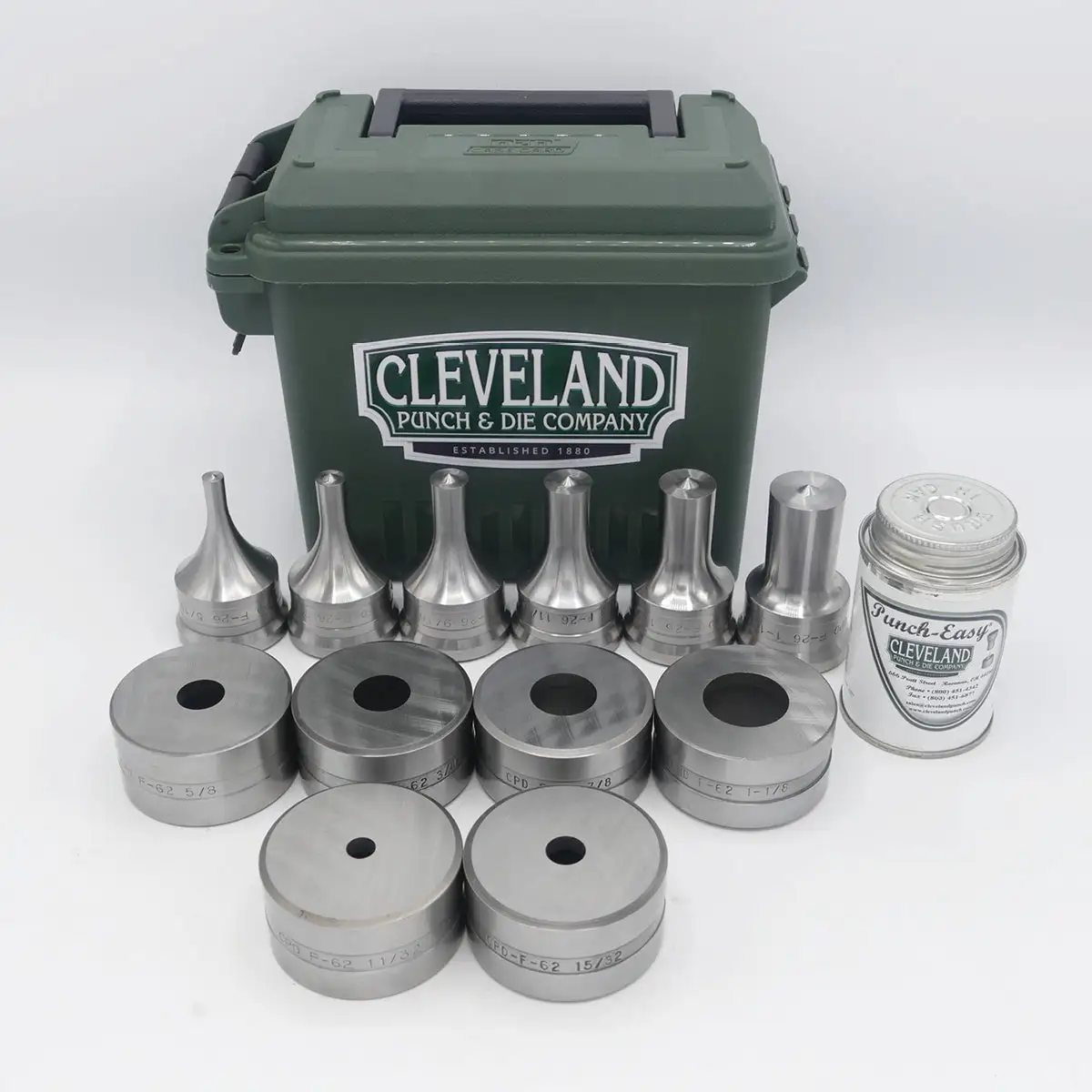

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F26 Round Punches, 6 F62 Round Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

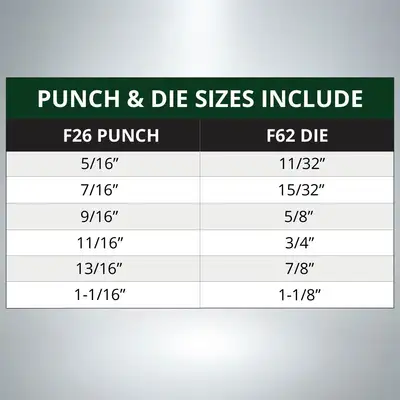

Punch & Die Sizes Include:

F26 Punch
5/16", 7/16", 9/16", 11/16", 13/16", 1-1/16"

F62 Die
11/32", 15/32", 5/8", 3/4", 7/8", 1-1/8"

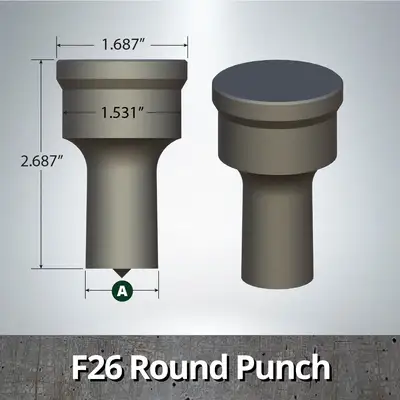

F26 Punch Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.687"

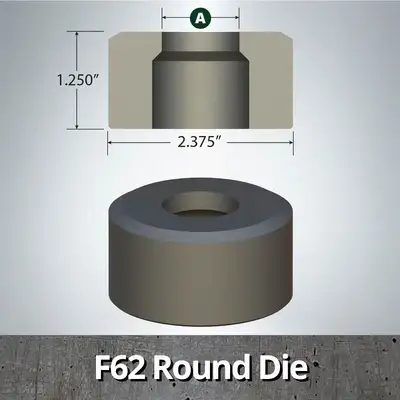

F62 Die Dimensions: Outside Diameter: 2.375" Height: 1.250"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F26 Punch
AP-128, CST-228, GFM-45, PIR-EF

F62 Die
AP-319, CST-419, GFM-85, PIR-JF

Proudly Made in the USA
