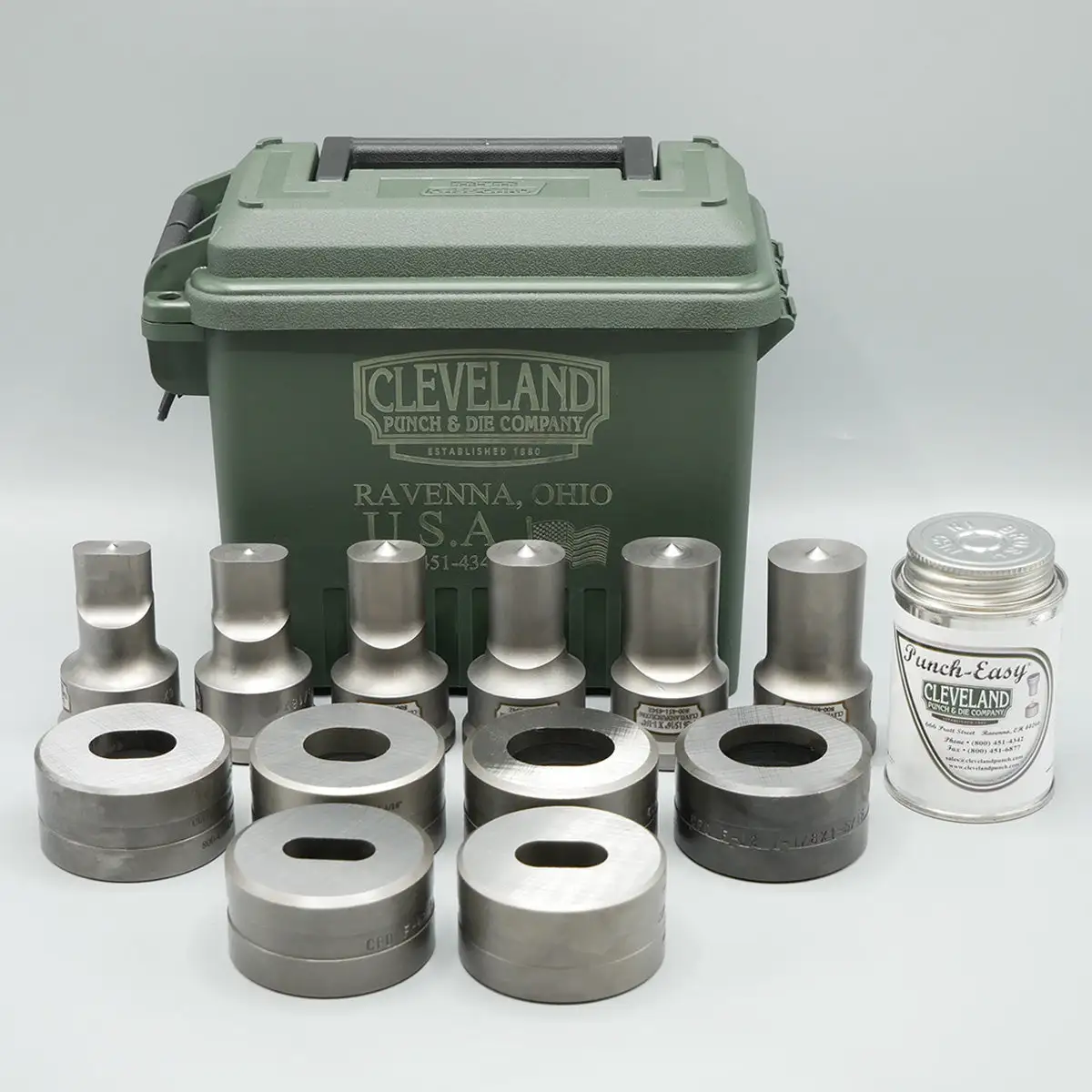

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F26 Oblong Punches, 6 F62 Oblong Dies, Half Pint of Punch-Easy®, and Toolbox.
Additional Information
Punch & Die Sizes Include:
F26 Punch
7/16" x 1", 9/16" x 1", 11/16" x 1", 13/16" x 1", 15/16" x 1-1/4", 1-1/16" x 1-1/4"
F62 Die
1/2" x 1-1/16", 5/8" x 1-1/16", 3/4" x 1-1/16", 7/8" x 1-1/16", 1" x 1-5/16", 1-1/8" x 1-5/16"
F26 Punch Dimensions: Head Diameter: 1.687" Body Diameter: 1.531" Overall Length: 2.687"

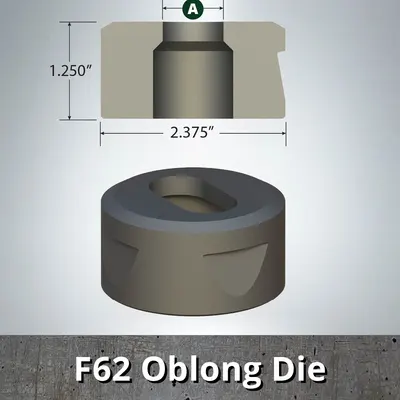

F62 Die Dimensions: Outside Diameter: 2.375" Height: 1.250"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:
F26 Punch
AP-128, CST-228, GFM-45, PIR-EF
F62 Die
AP-319, CST-419, GFM-85, PIR-JF
Proudly Made in the USA
