F272/F740 Oblong Punch & Die Set - 6 Pack

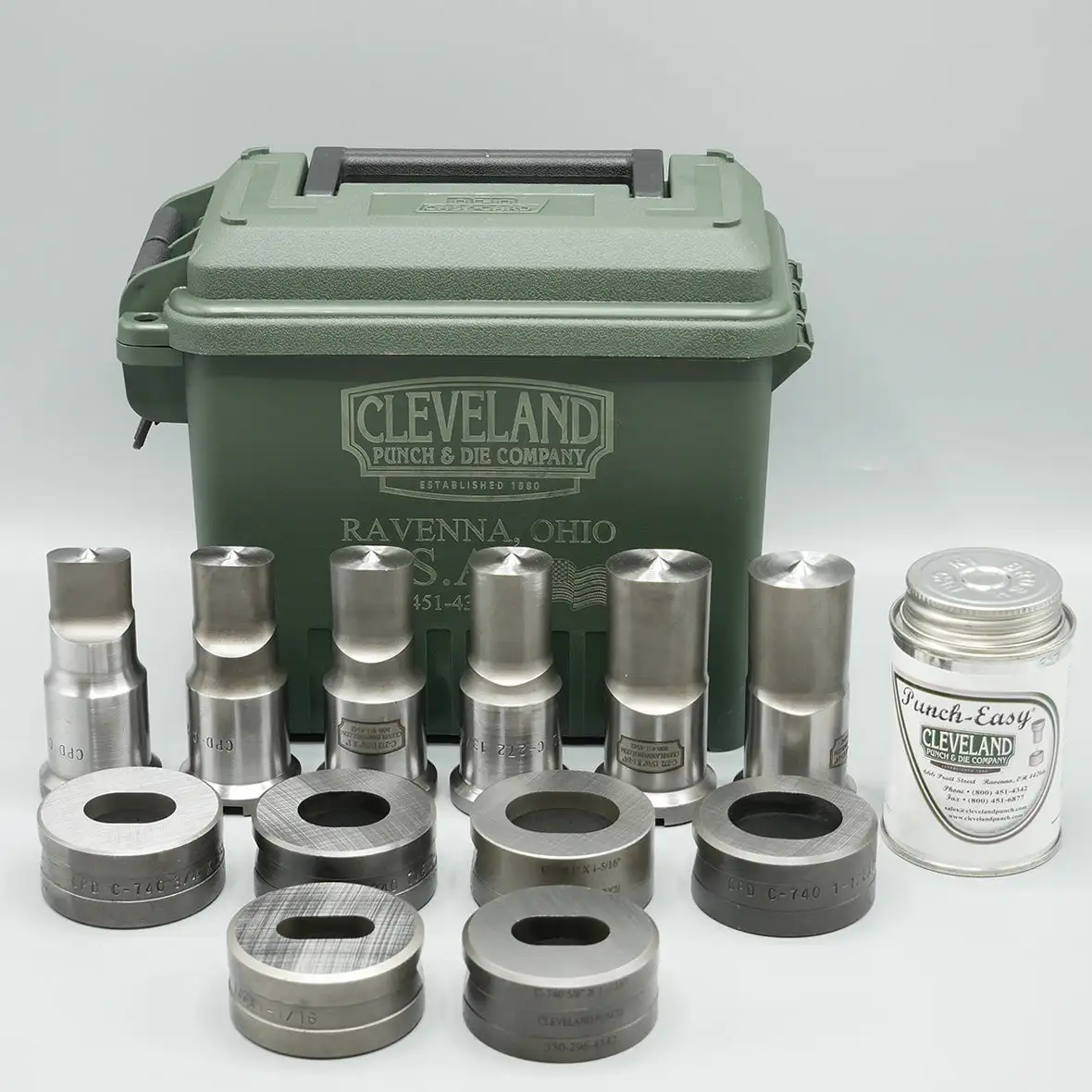

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F272 Oblong Punches, 6 F740 Oblong Dies, Half Pint of Punch-Easy®, and Toolbox. Punches are supplied with keyway. Dies are supplied with notch.

Additional Information

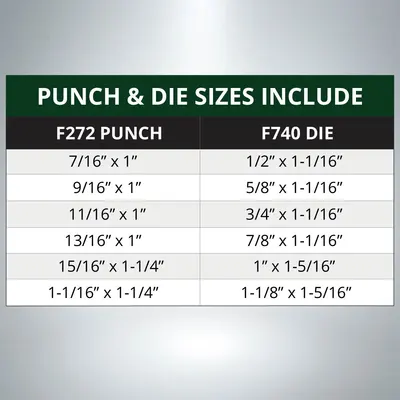

Punch & Die Sizes Include:

F272 Punch
7/16" x 1", 9/16" x 1", 11/16" x 1", 13/16" x 1", 15/16" x 1-1/4", 1-1/16" x 1-1/4"

F740 Die
1/2" x 1-1/16", 5/8" x 1-1/16", 3/4" x 1-1/16", 7/8" x 1-1/16", 1" x 1-5/16", 1-1/8" x 1-5/16"

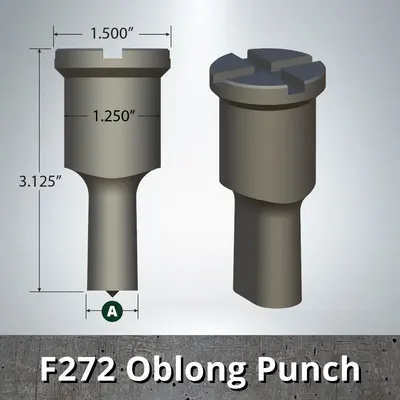

F272 Punch Dimensions: Head Diameter: 1.500" Body Diameter: 1.250" Overall Length: 3.125"

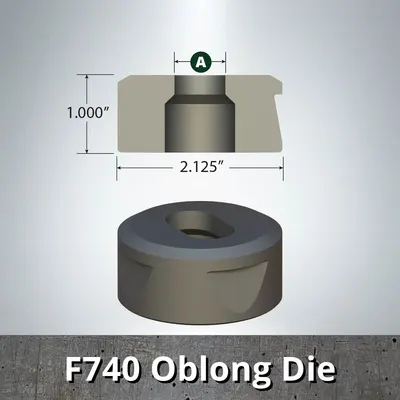

F740 Die Dimensions: Outside Diameter: 2.125" Height: 1.000"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F272 Punch
AP-164, CST-64, GFM-124, WAW-7701

F740 Die
AP-347, CST-47, GFM-132, WAW-7402

Proudly Made in the USA
